TY28 Solder-Free Aviation Waterproof 2 Pin Bulkhead Connector Male Female Cable Plug Socket Screw-Crimp for Power Device 45Amp, in-line Mount Quick-Disconnect
4.5 (52 items)
Limited Time Sale$9.90 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218809770 | Release Date | 2026/05/03 | List Price | $6.60 | Model Number | 218809770 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: The connector can provide a safe and reliable connection in the harsh environment . TY28 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box. Specifications: TY28: Model: 2-4 Pin IP Rating: IP68 Panel Cutout Diameter: 28.5mm Cable Outer Diameter Range:10-15mm Coupling Type: Threaded Coupling Shell material: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PA66, max temperature 200℃ Contact Material: Pure copper plated gold Wiring way: Free-Solder / Screw Crimp Mating Cycle: >500 times Temperature Range: -25~+85℃ Package Includes: 1 x Plug with male contact 1 x Socket with female contact 1 x Waterproof / Dustproof Cap
- TY28 2-pin waterproof free-solder screw crimp connector, easy for assembly cable
- Features Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance

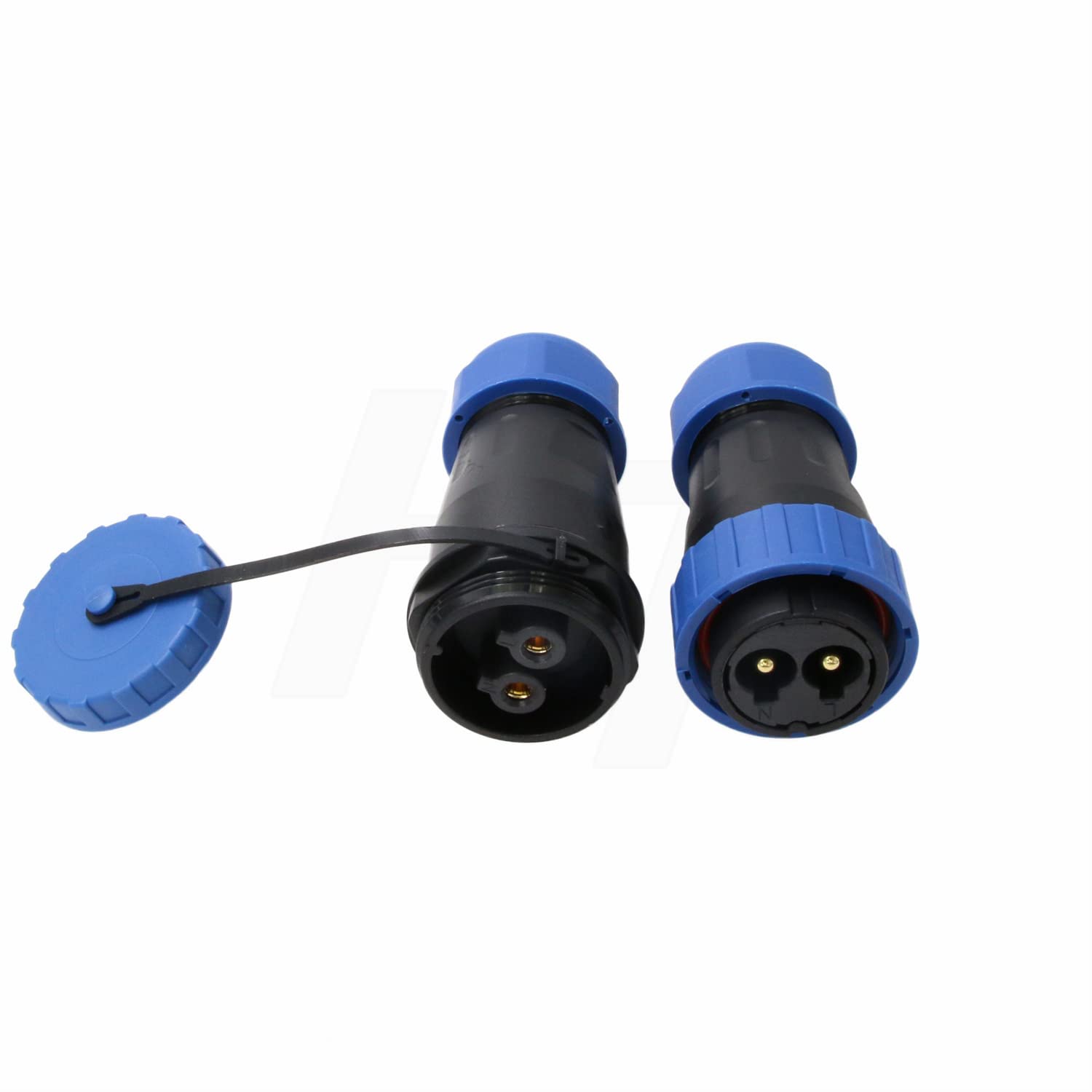

- cable in-line mount female socket and cable plug with watertight cap
- Rated Voltage/Current AC 380V/45A, Contact resistance 0.5mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 10-15mm, Wire gauge 6mm² or 10AWG, Contact Diameter Φ3.6mm
- Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment
| Color | In-line Mount |
|---|---|
| Gauge | 10.0 |
| Model | TY28-2B |
| Terminal | Screw Terminal |
| Brand Name | HangTon |
| Unit Count | 1.0 Count |
| Part Number | TY28-2B |
| Manufacturer | HangTon Connect |
| Material Type | Copper |
| Connector Type | Pin |
| Maximum Voltage | 380 Volts |
| Contact Material | Copper |
| Specification Met | Ul, Ip68 |
| Temperature Rating | 85 degree celsius |
| Warranty Description | 1 Year Manufacturer |
| Insulation Material Type | Thermoplastic |
