TY16 2 Pin Male Female Plug Socket, Screw Terminal Bulkhead Waterproof Connector, in-line, for Electrical Power Outdoor Device 16A 380V
4.0 (66 items)
Limited Time Sale$6.27 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218916561 | Release Date | 2026/05/03 | List Price | $4.18 | Model Number | 218916561 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: The connector can provide a safe and reliable connection in the harsh environment . TY16 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box. Specifications: TY16: Model: 2-4 Pin IP Rating: IP68 Panel Cutout Diameter: 15.3-16.5mm Cable Outer Diameter Range:5-8mm Coupling Type: Threaded Coupling Shell material: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PA66, max temperature 200℃ Contact Material: Pure copper plated gold Wiring way: Free-Solder / Screw Crimp Mating Cycle: >500 times Temperature Range: -25~+85℃ Package Includes: 1 x Plug with male contact 1 x Cable socket with female contact 1 x Waterproof / Dustproof Cap
- TY16 2-pin electrical power connector, waterproof, screw-wring, screw terminal connection, free-solder, bulkhead, easy for assembly cable. No Soldering. Feed the wires all the way into the screw terminals and tighten securely
- Rated Voltage/Current AC 380V/16A, Contact resistance 1mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 5-8mm, Wire gauge 4mm² or 12AWG-18AWG, Contact Diameter Φ2.8mm

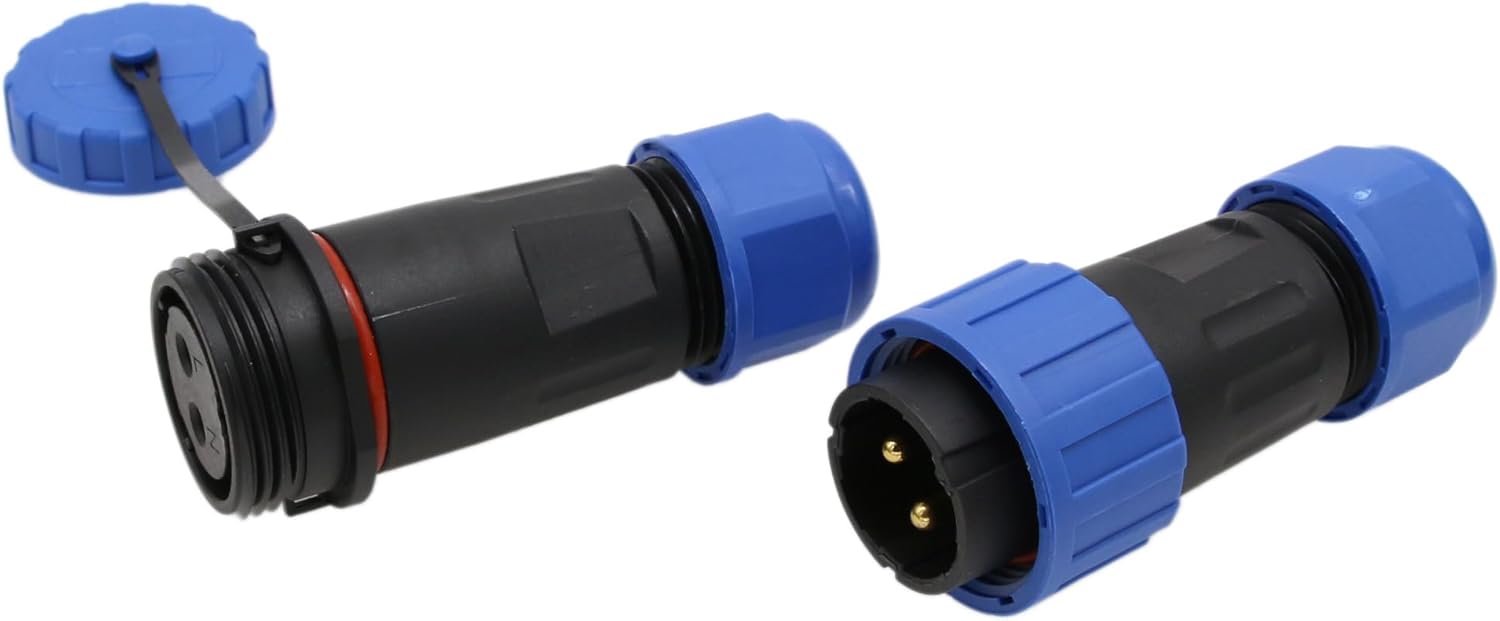

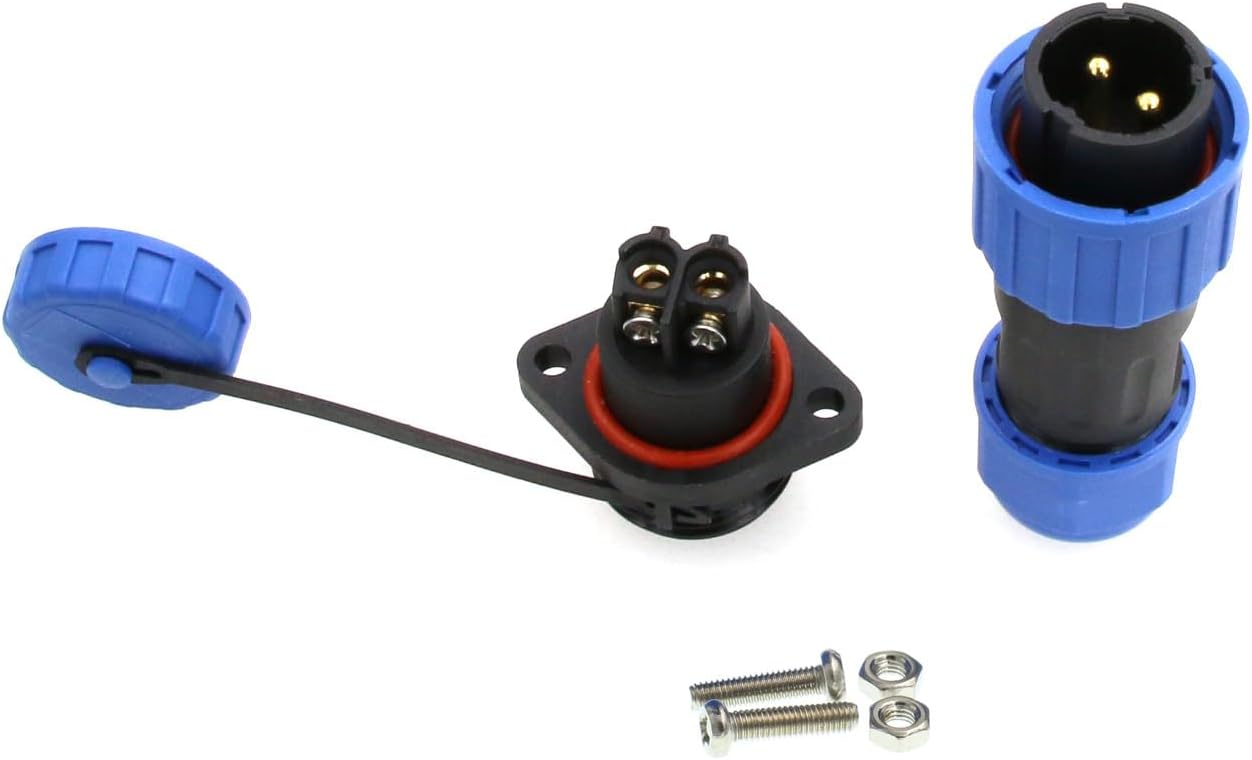

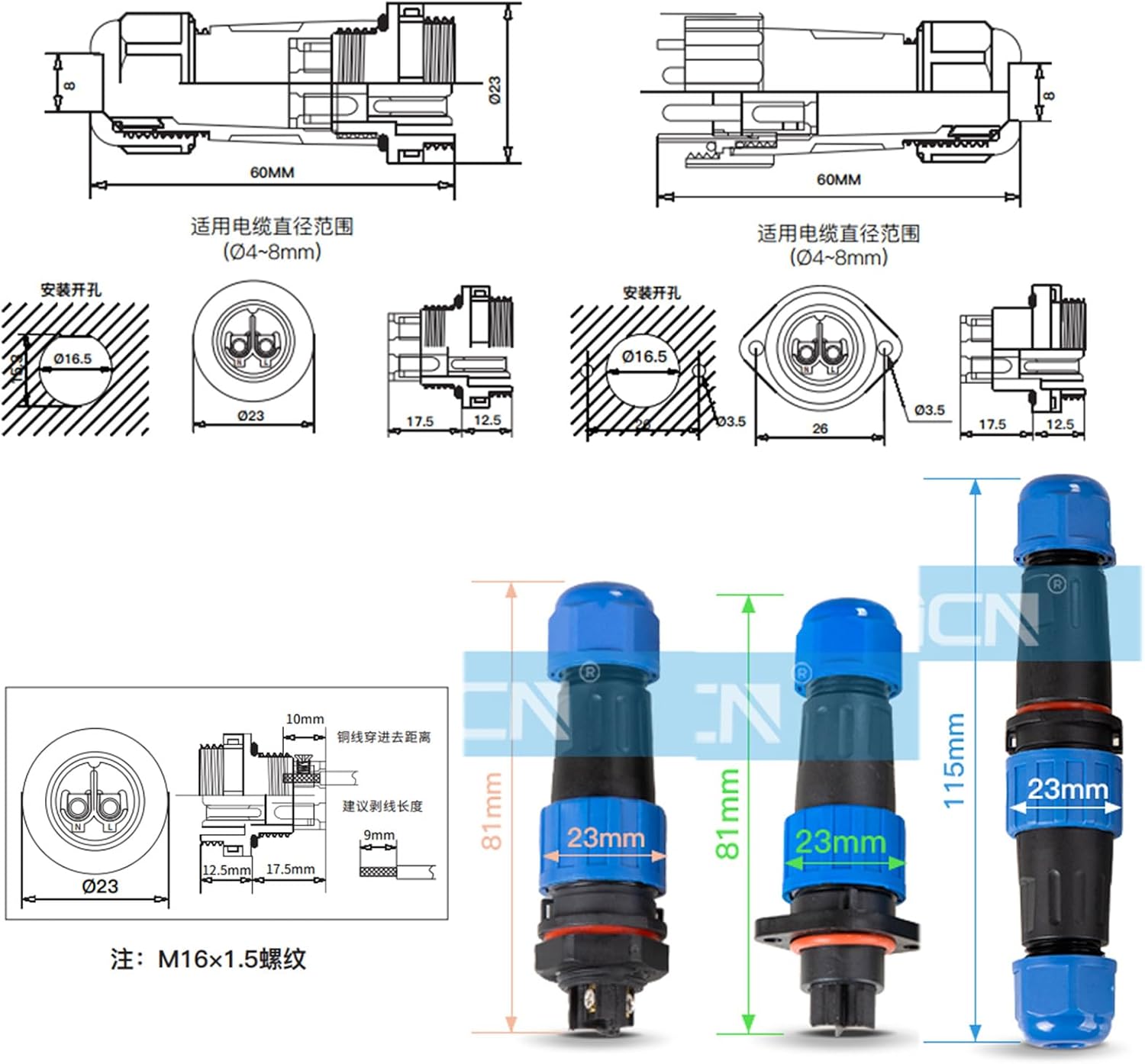

- Male cable plug and rear panel mount female receptacle socket with watertight cap. Panel cutout 16.5mm, thread size M16 x 1.5
- Features Waterproof IP68, threaded coupling and solid locking, quick disconnect and connect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance
- Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment
| Color | In-line Mount |
|---|---|
| Voltage | 380 Volts |
| Amperage | 16 Amps |
| Plug Type | Type A |
| Brand Name | HangTon |
| Part Number | TY16-2B |
| Manufacturer | HangTon Connect |
| Material Type | Copper, Nylon |
| Connector Type | Plug in |
| Number Of Wires | 2 |
| Number of Poles | 2 |
| Warranty Description | 1 Year Manufacturer |
