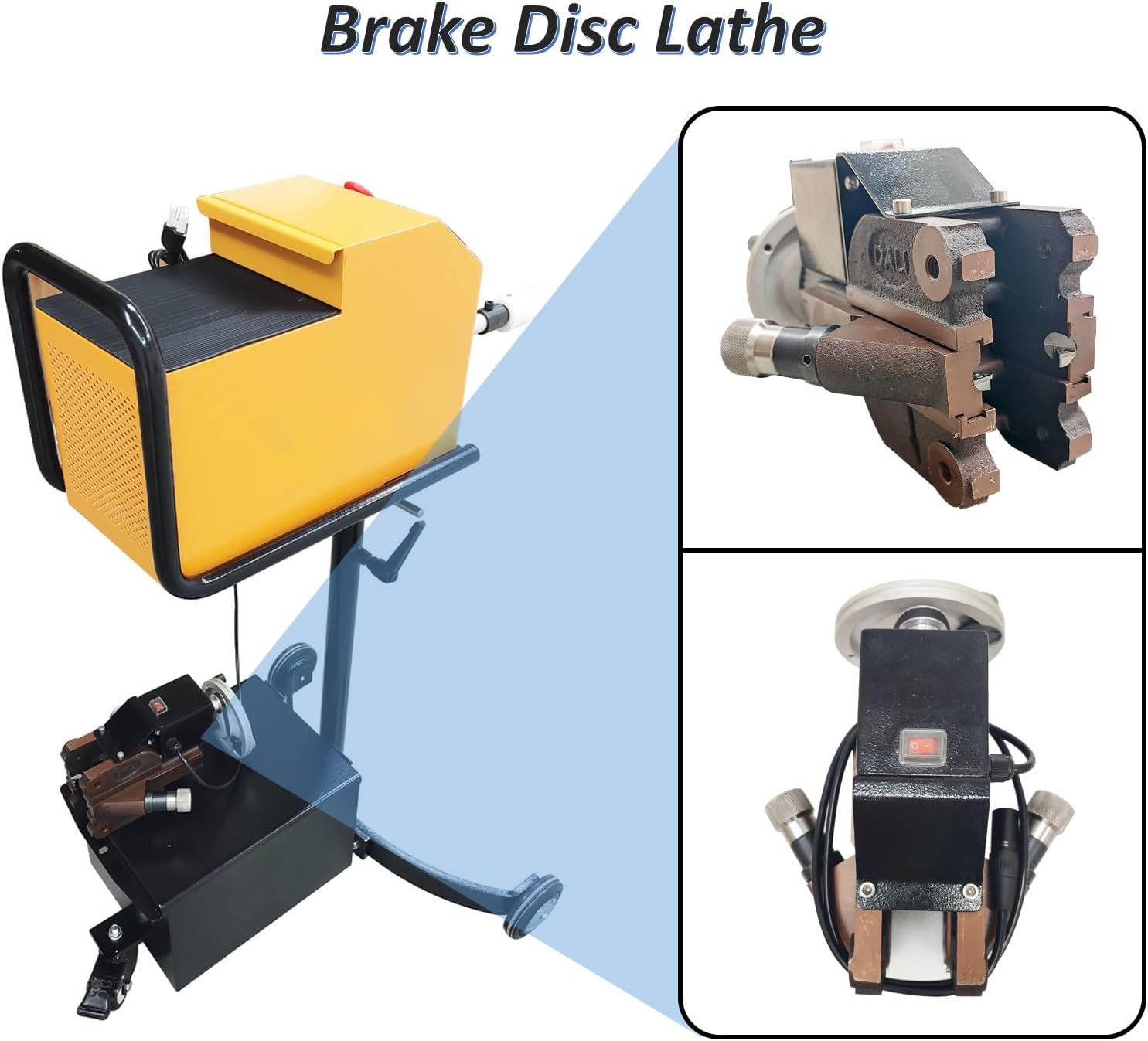

TECHTONGDA Car Repair Brake Disc Drum Lathe Machine with 450mm/17.72'' Max Processing Diameter, 8.5mm/min Disc Grinding Tool, 110V Brake Polishing Cutting Machine, No Disassembly Required

Product ParametersVoltage: 110V 60HZPower: 850WRotating speed: 98rpmMaximum diameter of brake disc: 450mm (17.72'')Thickness of brake disc: 6-42mm (0.24''-1.65'')Plane cutting accuracy: 0.003mmRepeated assembly and disassembly tolerance:＜0.03mmCutting feed amount: 0.005-0.015mmFeed velocity: 8.5mm/minOperating height: 1-1.25m (39.37''-49.21'')Working environment temperature: -30~60˚COperation Method1. Park the vehicle safely on the two-column lifting platform, lift the vehicle to the correct horizontal position, remove the wheels, check the bearing clearance on the wheels and install the driver adapter.2. Remove the brake pad base and place it properly.3. If there is any dirt on the brake disc and brake shell, remove the dirt and install the connector on the brake disc. Before the brake disc is ground, it is necessary to clearly understand the requirements for the thickest and thinnest dimensions of the brake disc. If the thickness of the brake disc is smaller than the thinnest requirement, do not grind the brake disc and be sure to replace the brake disc. If the thickness of the brake disc is greater than the technical parameters of the machine, do not attempt to operate it.4. Install the clamp to the operation position by hand and then tighten the screws with a wrench.5. Install the disc lathe, install the screws by hand and adjust the center position. Tighten the screws with a torque wrench. Do not exceed 50Nm. Then use a long hex wrench to fix the clamp screws.6. Install the driver unit: Adjust the bracket height to the appropriate position and connect the driver with the driver adapter. After fixing the position, press the brake to ensure that the driver cannot move randomly.Item Number (022834): 1 x Non-disassembly Car Brake Disc Repair Polishing Machine 110V

• High Performance: Engineered with a precise plane cutting accuracy of 0.003mm. Powered by an 850W motor operating at 98rpm, it handles brake discs up to 450mm (17.72") in diameter and 6-42mm (0.24"-1.65") in thickness, the good contact between the brake discs and brake pads can be ensured, the braking performance can be improved.

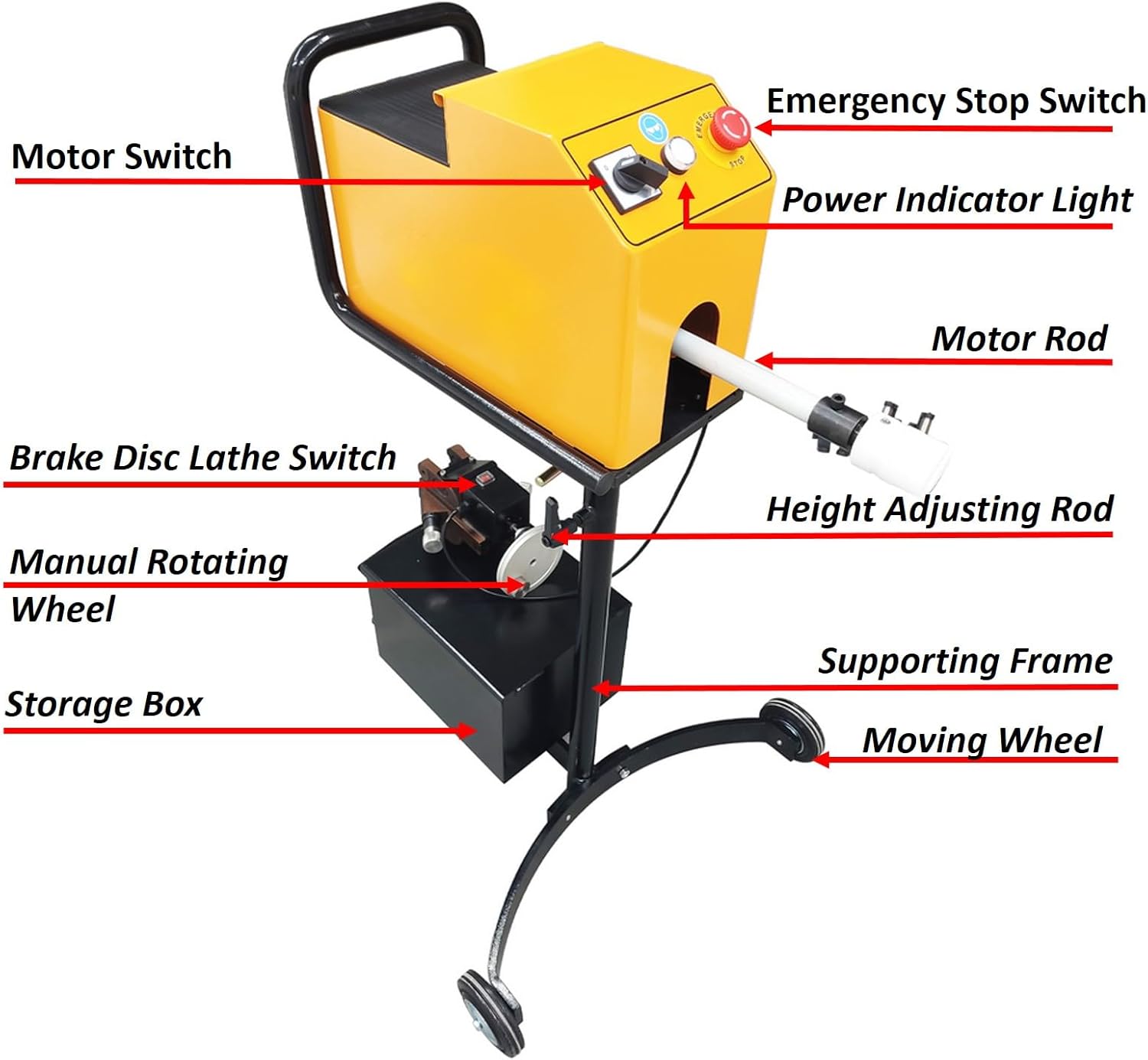

• Stable Operation: Brake disc drum lathe features a rigid supporting frame and an adjustable-height rod that locks securely for stability in various working scenarios. The design ensures minimal repeated assembly and disassembly tolerance of <0.03mm, guaranteeing reliable performance across multiple uses.
• User-Friendly Control: Brake disc repair polishing machine equipped with a compact, integrated control panel for easy operation. It allows for precise adjustment of the cutting feed amount (0.005-0.015mm) and maintains a controlled feed velocity of 8.5mm/min for optimal cutting quality and tool longevity.
• Compact Design: The disc grinding tool boasts a compact structure for easy setup and includes a durable, high-capacity rectangular storage box at the base of the frame. This provides convenient and protective storage for the brake disc lathe and driver unit when not in use, enhancing portability and organization.
• Car Brake Disc Repair: Effectively repairs surface wear, scratches, and deformation on brake discs without the need for removal. This professional-grade device performs grinding and polishing operations directly on the vehicle, saving significant time and labor.
