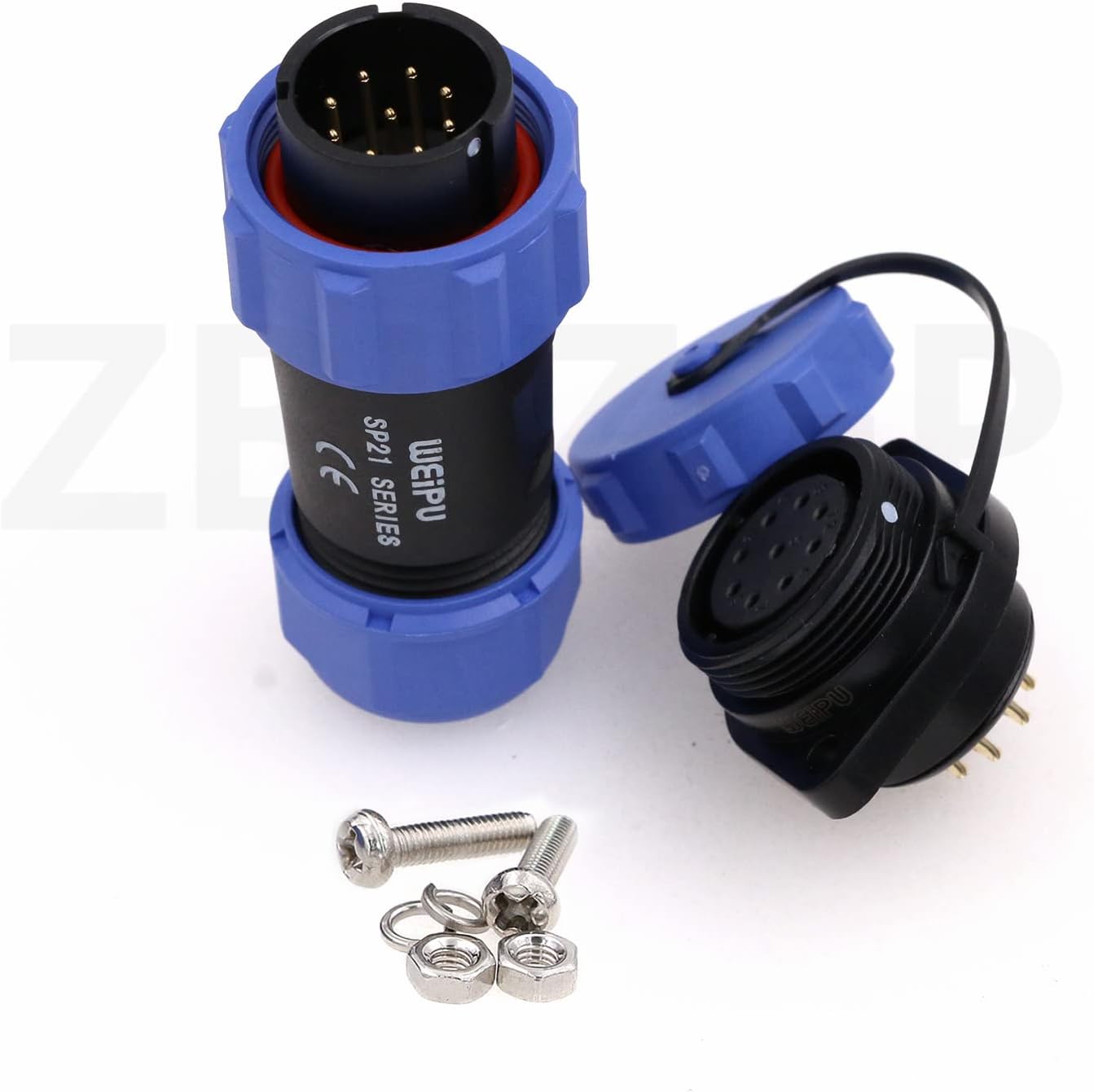

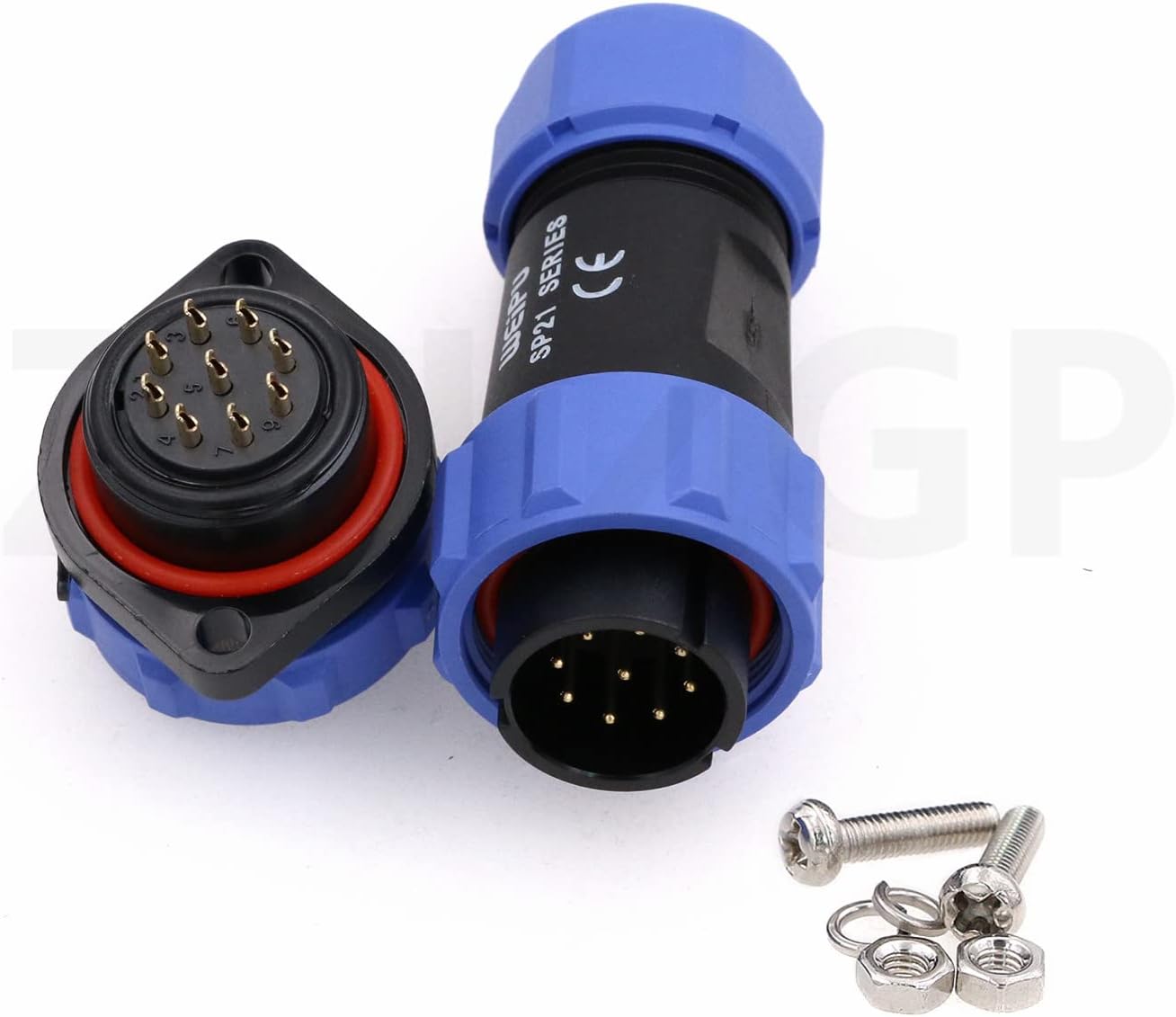

SP21 9 Pin High Voltage Bulkhead Heavy Connector Circular Kit Cable Wire Plug Panel Mount Socket 5A Waterproof Plastic Quick Connect 18 AWG Wire

1. Product Features​Superior Waterproof Performance: With an IP68 protection rating, the WEIPU SP21 connector can be submerged in water up to a certain depth for a specified time without water ingress, ensuring reliable operation in wet environments. It effectively prevents dust, water, and moisture, making it suitable for both indoor and outdoor applications.​Robust Construction: Made from high quality PC, nylon 66 materials for the shell with a V-0 fire resistance rating, and PPS insert material capable of withstanding high temperatures up to 260 °C. The contact material is brass with gold plating, which not only offers excellent electrical conductivity but also good corrosion resistance, ensuring long - term stable performance.​Easy Connection and Secure Locking: Features a threaded coupling design for quick locking and easy operation. The cable locking form of the plug is a claw type clamping, which firmly secures the cable, and the socket wiring method is wire soldering, providing a stable and reliable connection.​Versatile Termination Options: Offers multiple termination methods including solder, crimp, and screw, allowing for flexible installation according to different application requirements.​2. Product Series Details​The SP21 series of connectors provides a wide range of options to meet various needs:​Mounting Options: Available in panel mount, cable mount, and in line cable mount configurations. This allows for cable to cable connections or cable to panel mount connections, with either end being male or female. Additionally, there is a 90 degree cable mount connector for added installation flexibility.​Core Number Options: Comes in 2 core, 3 core, 4 core, 5 core, 6 core, 7 core, 8 core, 9 core, 12 core, suitable for different signal transmission and power supply requirements.​3. Product Specifications​Voltage: The rated voltage can reach up to 500V AC, suitable for a variety of power supply systems.​Current: The maximum current is 30A, capable of providing sufficient power for many electrical devices.​Cable Outer Diameter Range: There are two options for cable outer diameter: I: 4.5-7 mm and II: 7-12 mm, which can be selected according to the actual cable used.​Insulation Resistance: With an insulation resistance of 2000MΩ, it effectively prevents electrical leakage and ensures electrical safety.​Mating Cycle: Can withstand up to 500 mating cycles, demonstrating good durability and long term usability.​Temperature Range: Operates within a temperature range of - 40 °C to + 85 °C, adapting to different environmental temperature conditions.

• WEIPU-Industrial SP21 9 Pin electrical connector IP68 waterproof quick screw locking solder cable connectors.Cable Outer Diameter: 7mm-12mm;Thread Diameter : 21mm;Rated Current (A): 5A;Contact diameter × number: Φ1*9;Rated voltage (AC.V.): 500V;Withstanding Voltage (AC.V) 1 minute: 1500V;Contact resistance: 5mΩ;Wire specification: <0.785m㎡/18AWG.
• IP68 waterproof connector.Bayonet 1/4 quick coupling, simple operation, easy installation.Dustproof cover design under Power Off Condition.
• Widely used in data acquisition systems, inclinometer, computer automation measurement and control systems, mechnical equipment, audio/video, communications, automotive and other industries.High grade contact materials, can connect effectively.
• Threaded Fast Coupling The Each side can choose male or female contacts.High performance engineering nylon PA66 plastics.
• Applications: Indoor or outdoor lighting (floodlight, LED plant growing light, fountain light, etc).Outdoor garden tool, new power equipment, industrial equipment, boat or boating system, etc.
