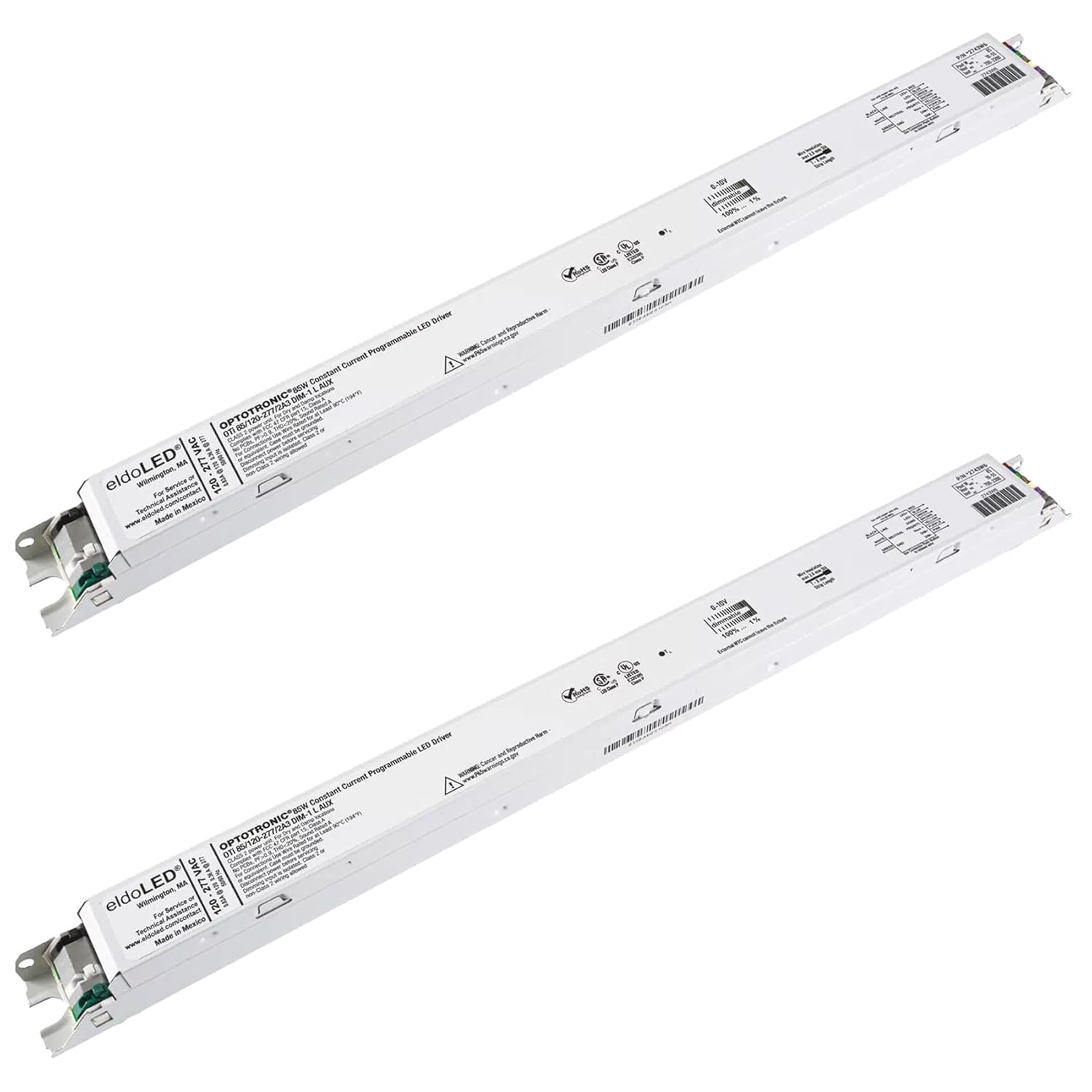

Pack of 5 - eldoLED *2743W6 OPTOTRONIC 85W Constant Current 0-10V Dimmable LED Driver, Programmable Linear OTi85/120-277/2A3 DIM-1 L AUX - Replacement/Compatible with Osram 57421
4.6 (19 items)
Limited Time Sale$100.47 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219356417 | Release Date | 2026/05/03 | List Price | $66.98 | Model Number | 219356417 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
eldoLED *2743W6 OPTOTRONIC 85W Constant Current 0-10V Dimmable LED Driver, Programmable Linear OTi85/120-277/2A3 DIM-1 L AUX - Replacement/Compatible with Osram 57421 eldoLED *2743W6 OPTOTRONIC 85W Constant Current 0-10V Dimmable LED Driver, Programmable Linear OTi85/120-277/2A3 DIM-1 L AUX The eldoLED *2743W6 OPTOTRONIC 85W programmable and dimmable family includes efficient, linear, constant current LED drivers. OEMs can configure the output current in 1mA increments with one-click programming using the OPTOTRONIC programmer. Customers can also customize end-of-life indicators, LED thermal protection, and constant-lumen maintenance features. Programming doesn't require the driver to be powered up or connected to AC line voltage. These drivers offer built-in 0-10V dimming, with models ranging from true 1% to 10%, and an auxiliary output capable of powering various sensors. Product FeaturesType: Constant CurrentOutput Power: 85WProgramming Tool: *274A17 (51645) & *2747CR/*2743V1 (51647/ 51648)Programmable Features: Output currentDimming levelDim-to-off, Soft StartLED thermal protection lighting AccessoriesAuxiliary output voltageConstant lumen outputEnd-of-life indicatorInput Voltage: 120-277V AC (+/- 10%)Frequency Range: 50–60Hz (+/- 10%)Output Current: 700-2300mA (1mA step) 1400mA defaultOutput Voltage: 10-55V DCDimming Control: 0–10V (Isolated)Dimming Range: 1-100%Dimming Type: Current ReductionMaximum Case Temperature (Tc point): 85ºC (50kHrs)¹ / 90ºC max. (30kHrs)Ambient Operating Temperature (reference): -40ºC to 55ºCUL Rating: Dry & DampMaximum Storage Temperature: 70 ºCMaximum Relative Humidity: 85% non-condensingDimensions (L x W x H): 16.73'' x 1.15'' x 1.0''Weight: 14.4ozWarranty: 5 YearsAreas of ApplicationIndirect/directLinearRecessed troffer
- Type: Constant Current
- Output Power: 85W
- Input Voltage: 120-277V AC (+/- 10%)
- Output Current: 700-2300mA (1mA step) 1400mA default / Output Voltage: 10-55V DC
- Dimming Control: 0–10V (Isolated) / Dimming Range: 1-100% / Dimming Type: Current Reduction
| Brand Name | eldoLED |
|---|---|
| Item Weight | 14.4 Ounces |
| Part Number | 2743W6 (FBA) |
| Manufacturer | eldoLED |
| Power Source | Corded Electric |
| Mounting Type | Surface Mount |
| Current Rating | 2300 Milliamps |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Specification Met | UL |
| Included Components | 1)2743W6 |
