mxuteuk 1NC 1NO E-Stop Switches with Box Red Mushroom Emergency E-Stop Push Button Switch AC 660V 10A Switch Station Box G076
4.3 (131 items)
Limited Time Sale$17.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218134700 | Release Date | 2026/05/03 | List Price | $11.60 | Model Number | 218134700 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

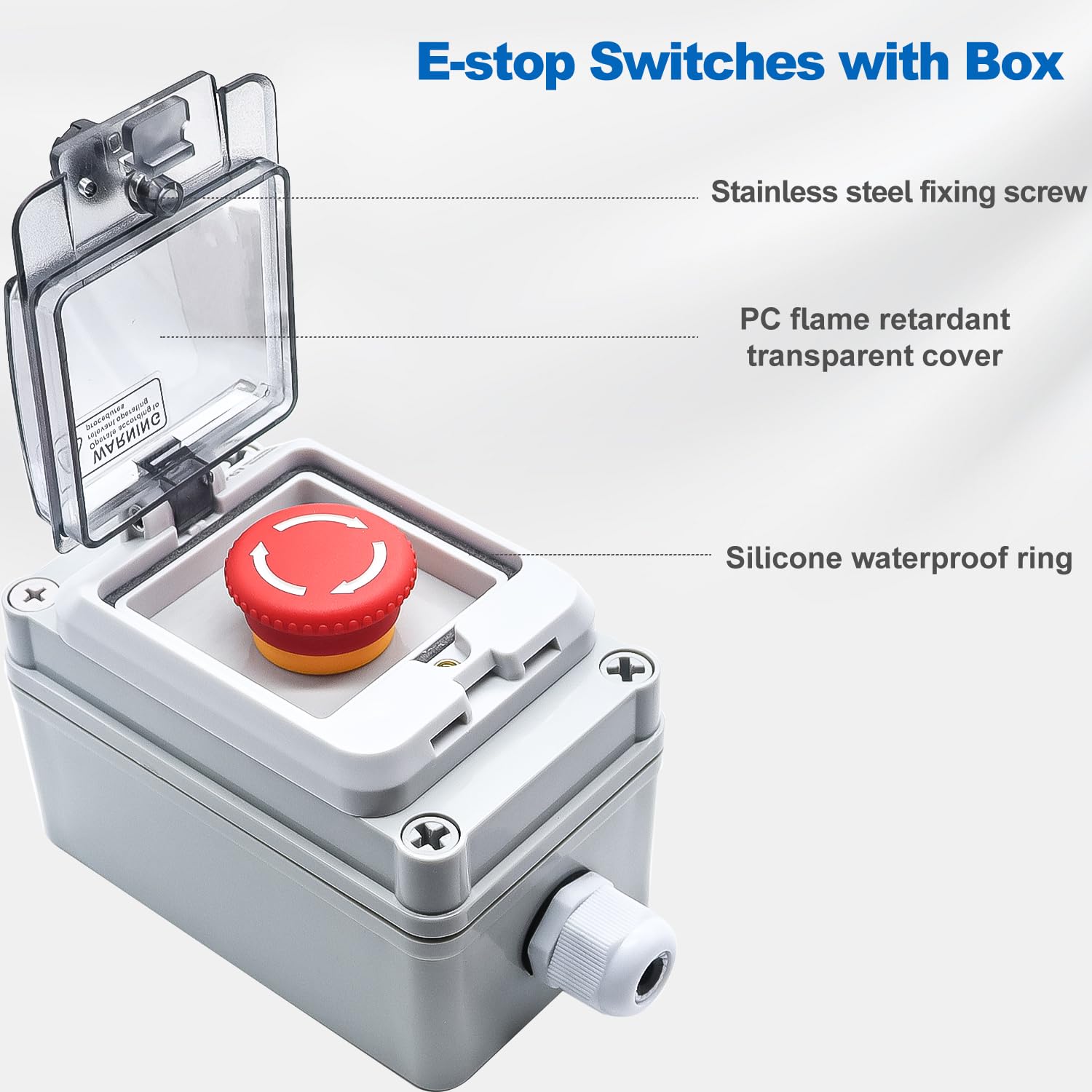

Elevate your safety measures with our robust mxuteuk Emergency Stop Push Button Switch Box, designed to instantly halt machinery in case of emergencies. This IP67 waterproof and dustproof switch features a 1NC 1NO contact type, a 10A current rating, and a 600V operating voltage, ensuring reliable performance even in harsh environments. Crafted from durable ABS material, it measures 200mm(L) x 150mm(W) x 100mm(H) and comes with a 22mm mount hole diameter, making it easy to integrate into your existing systems. The switch is manually operated, with a touch control method, and is available in a sleek black color. Ideal for industrial, manufacturing, and automation sectors, this switch comes as a single unit, packaged securely for long-term use.
- Product Name : Emergency Stop Push Button Switch Box ; Contact Type :1NC 1NO；
- Waterproof level: IP67;Ith：10A ; Ui：600V;
- Full size: 200*150*100mm (L*W*H) Mount Hole Diameter : 22mm / 7/8";
- High quality: The shell is made of ABS material, IP67 waterproof grade, waterproof and dustproof, suitable for long-term use.
- Package Content : 1pcs x Emergency Stop Push Button Switch.
| Color | black |
|---|---|
| Model | G076 |
| Wattage | 6000 watts |
| Terminal | Screw |
| Brand Name | mxuteuk |
| Part Number | G076 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | emergency stop |
| Manufacturer | mxuteuk |
| Actuator Type | Push Button |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Operation Mode | manual |
| Controller Type | Push Button |
| Number of Items | 1 |
| Contact Material | Nickel |
| Operating Voltage | 600 Volts (DC) |
| Specification Met | Ip67, 10a, 600v |
| Compatible Devices | Machinery, devices with emergency stop functionality, and systems with screw-type connectors |
| Number of Positions | 1 |
| International Protection Rating | IP67 |
