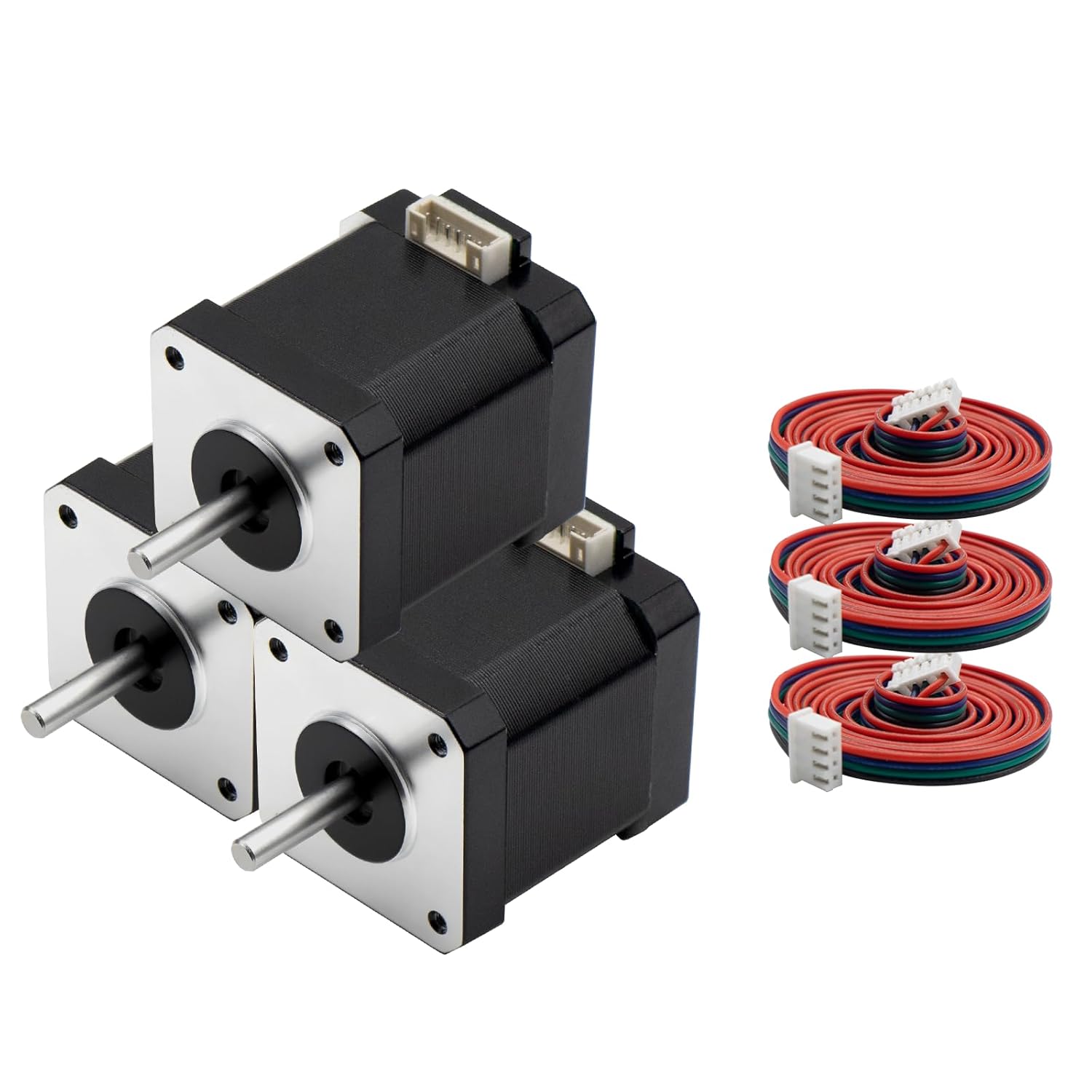

MAKERELE 3PC Nema 17 Stepper Motor Bipolar 1.3A, 23mm Body, 15.5Ncm(21oz.in) Torque, 1.8°Degree, 4-Lead with 1m Cable and Connector for DIY 3D Printing and CNC Applications
4.9 (124 items)
Limited Time Sale$13.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218143926 | Release Date | 2026/05/03 | List Price | $9.20 | Model Number | 218143926 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Specifications]: Body Length: 23mm/0.91inch; Step Angle: 1.8 degree; Phase: 2; Rated Voltage: 3.9V; Rated Current: 1.3A; Phase Resistance: 3.0Ω; Phase Inductance: 3.5mH; Holding Togque: 15.5Ncm (21oz.in); Weight: 120g.
- [Size]: Nema 17 Bipolar Stepper Motor: 42x42x23mm/ 1.66x1.66x0.91inch, Shaft Diameter: Φ 5mm ( D Shaft Φ 4.5mm ), Shaft Length: 18mm, 4 leads.
- [Pure Copper Wire Coil]: By adopting the winding and wire passing process, the copper wires are evenly distributed. During long-term operation, there will be no problems such as temperature rise, torque decline, or noise increase.
- [Compact Structure]: The stepper motor is small in size, beautiful in design, can be installed vertically or horizontally, has strong overload-bearing capacity, and saves space.
- [Wide Application]:The small NEMA17 stepper motors have a wide range of applications, covering key areas such as 3D printers, CNC machines, laser engraving machines and medical equipment.
| Brand Name | MAKERELE |
|---|---|
| Part Number | MK-STEPPER-1723-3PC |
| Manufacturer | MAKERELE |
| Included Components | STEPPER MOTOR |
