Linear Motion Ball Bearing Slide Block, SCS20UU 20mm Pillow Block Closed Linear Bearing Aluminum Bushing Linear Rail Support Guide Shaft Bearing for CNC 3D Printer Parts 4 Pack
4.1 (61 items)
Limited Time Sale$17.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218192861 | Release Date | 2026/05/03 | List Price | $11.60 | Model Number | 218192861 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features:Provides SCSUU series Linear Ball Bearing Slide Block Units complementary to linear ball bearings.Made of aluminum alloy and linear bearing, lightweight, aluminum housing to provide high strength and stiffness.It can cooperate with linear bearings to ensure excellent sports performance under high load or long stroke occasions.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degrees Celsius.Specification:Model: SCS20UUMaterial: Steel, AluminumNominal Shaft Diameter (dr): 20mmMounting Hole Size: M6Static Load Capacity (Cor): 1.37kNDynamic Load Capacity (Cr): 0.863kNSlide Block Size: 54mm x 50mm x 41mm / 2.13" x 1.97" x 1.61" (L*W*H)Package:4 x Linear Bearing Sliding Blocks
- Model: SCS20UU, Inner Diameter: 20mm/ 0.79",(For Linear Bearing Slide Bush: LM20UU)

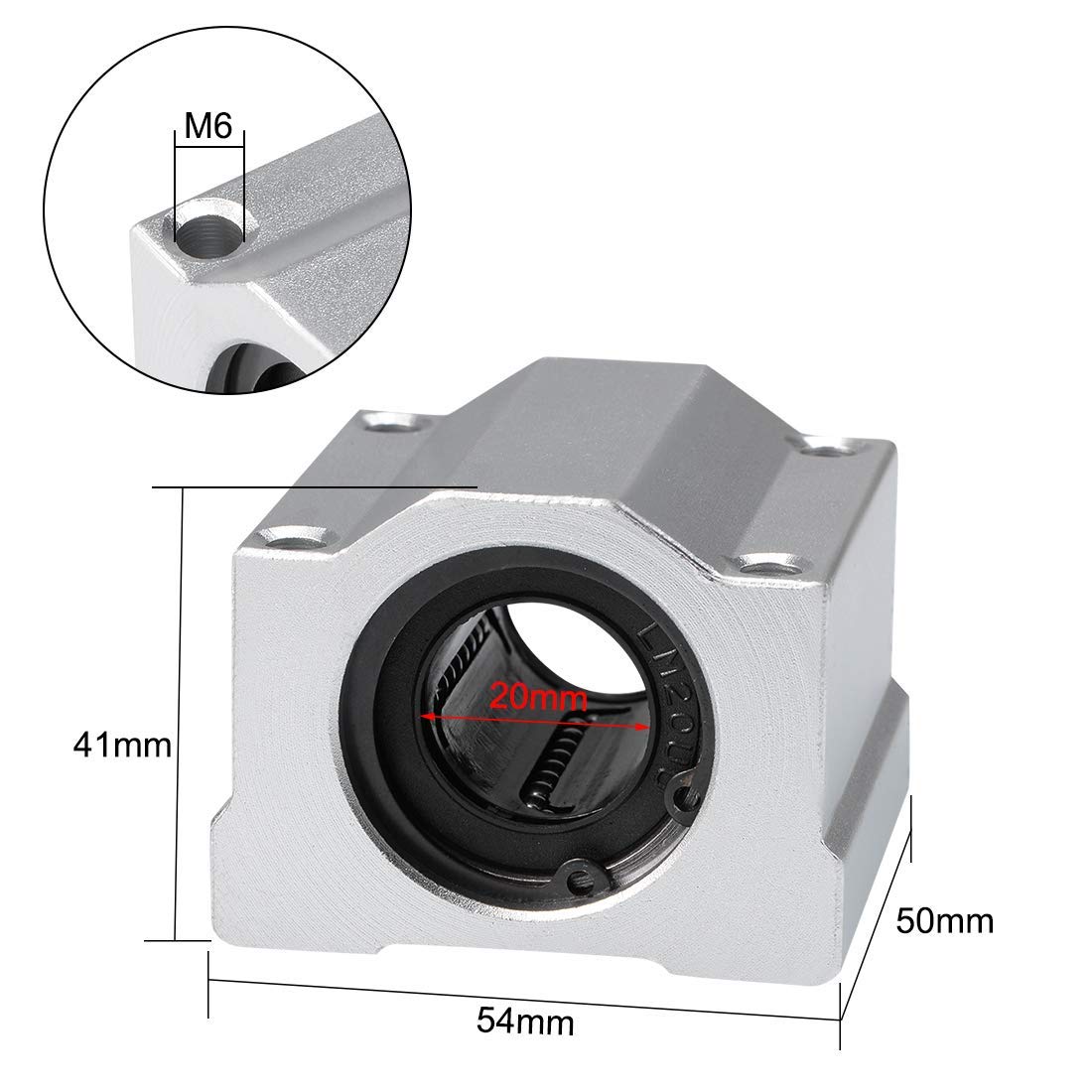

- Slide Block Size: 54mm x 50mm x 41mm / 2.13" x 1.97" x 1.61" (L*W*H); Mounted Hole Size: M6.
- Material: The body is made from aluminum alloy and Chromium steel bearing ball.
- Feature: Smooth moving, low friction, high rigidity, and long life. Economical, easy to maintain and replace.
- Application: Mainly used in guide bars, pillars, stepper motors, machine tool rails, 3D printers,CNC and electronic equipment.
| Model | SCS20UU |
|---|---|
| Brand Name | HIPICCO |
| Part Number | H2021122505 |
| Bearing Type | Ball Bearing |
| Manufacturer | HiPicco |
| Material Type | Aluminum, Stainless Steel |
| Bearing Number | SCS20UU |
| Item Thickness | 41 Millimeters |
| Specification Met | Ul |
| Included Components | Linear Motion Ball Bearing Slide Block |
| Compatible Lubricant | Grease |
