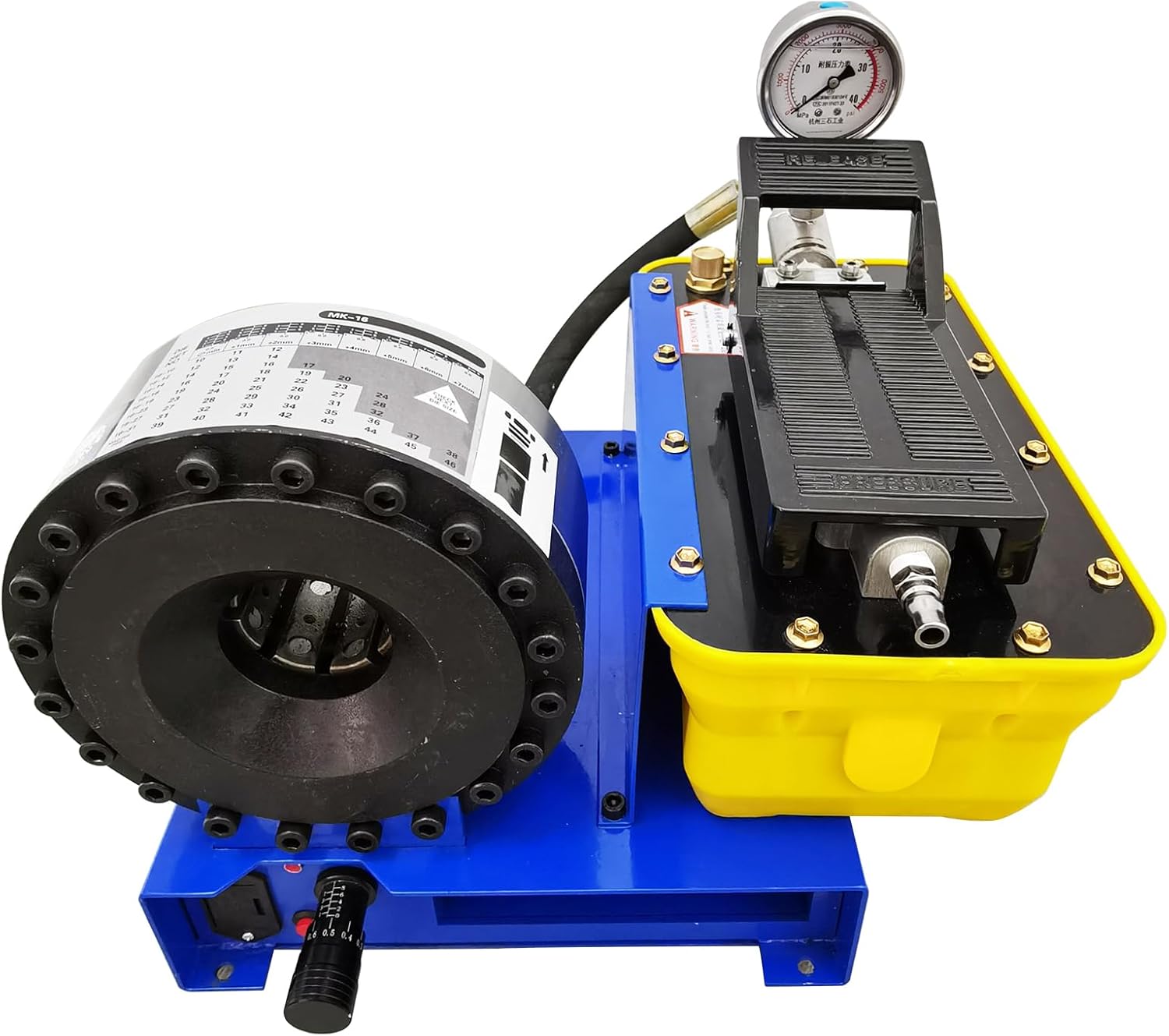

Hose Crimper High Pressure Hydraulic Hose Crimping Machine 1" Portable Pneumatic Hose Crimping Tool with 8 Sets of Dies

Product Parameters Power source: Pneumatic Crimp range: 0.24"-1"(6mm-25mm) Max opening without dies: 1.89"(48mm) Crimp force: 1000KN Dies quantity: 8 sets(10/12/14/16/19/23/27/30mm) Oil tank capacity: 1gal(4L) Pressure: 16Mpa Package size: 17.72"*16.54"*13.39" (45cm*42cm*34cm) Net weight/Gross weight: 67.90lbs(30.8kg)/80.69lbs(36.6kg) Note: 1. This product needs to be connected to the air pump or air compressor. 2. There is no hydraulic oil in the machine, and No. 46 hydraulic oil must be filled before use.

• High Efficiency. The clamping machine is a kind of hydraulic equipment used for clamping pipe assembly, the supporting metal joint through the clamping machine mold to exert shrinkage force, the metal joint firmly clamping in the supporting construction machinery with high pressure oil pipe or car brake pipe, oil pipe, air conditioning pipe, power pipe.
• With 8 Sets of Dies. Dies covering hose sizes: 8 sets(10/12/14/16/19/23/27/30mm. With high withholding precision and high production efficiency.
• High quality forged steel head, more durable than ordinary steel; Changing the die is very simple. The locking mechanism components are made of high quality alloy steel materials and unique heat treatment process to ensure the reliability and service life of the equipment.
• High Precision. Crimping diameter control Micrometer. Easy to install and take off from the machine. Accuracy up to 0.01mm.
• Wide Application. Suitable for all kinds of mechanical high and low pressure oil pipe, gas pipe, water pipe, cable joint, automobile air conditioning pipe, automobile power steering pipe, oil pipe, gasoline supply oil pipe, as well as construction accessories, daily hot water pipe, widely used in vehicles, construction machinery, hydraulic machinery, welding and cutting equipment and other industries.
