HDMI Matrix KVM Switch 2 Monitors 2 Computers, Dual Monitor Extended Display kvm Switch 4K@60Hz, 2K@144Hz, USB 3.0, EDID Emulator, EDID Copy Cross Display, with 4 HDMI Cables, 2 USB Cables

HDMI Matrix KVM SWITCH 2X2, Edid Emulator Cross Out, 4K@60HzDetailed hotkeys: It is recommended to control the completion of the hotkey combination within 1.5-2 seconds. If there is no special requirement, use the mouse as much as possible Hotkeys are more convenient and fast. Mouse hotkey: Double-click the wheel key+left or right button(switch between two computers) Note:Mouse hotkey can only control the KVM switching mode, cannot control the KVMmatrix mode matrix mode can only be achieved by keyboard hotkeys or device keys.Keyboard hotkeys:The initial default hotkey is right CTRL, if using right CTRL will conflict with other functions, the hotkey can be changed to:CTRL left, NUMLOCK,SCROLLLOCK Method of changing hotkeys:Current hotkey+current hotkey+specified hotkey+Enter For example, if the hotkey is set to [Numlock] and the current hotkey is right CTRL, Right Ctrl+Right Ctrl+Numlock +ENTER Hotkey combination.Instructions:1. Right Ctrl+Right Ctrl+[1]+Enter The PC1 Switch mode 2. Right Ctrl+Right Ctrl+[2]+Enter Switch to PC2 Switch mode 3. Right Ctrl+Right Ctrl+[3]+Enter Switch to PC1A+PC2A Matrix mode, hdmi Cross output and USB follows PC1 4. Right Ctrl+Right Ctrl+[4]+Enter Switch to PC2A+PC1A Matrix mode, hdmi Cross output and USB follows PC2 5. Right Ctrl+Right Ctrl+[B]+Enter Enables or disables the buzzer sound6. Right Ctrl+Right Ctrl+[S]+Enter Enables or disables the automatic scanning function 7. Right Ctrl+Right Ctrl+[S]+[Number]+Enter Set automatic scanning time (8 to 999 5S) The default value is 8 seconds

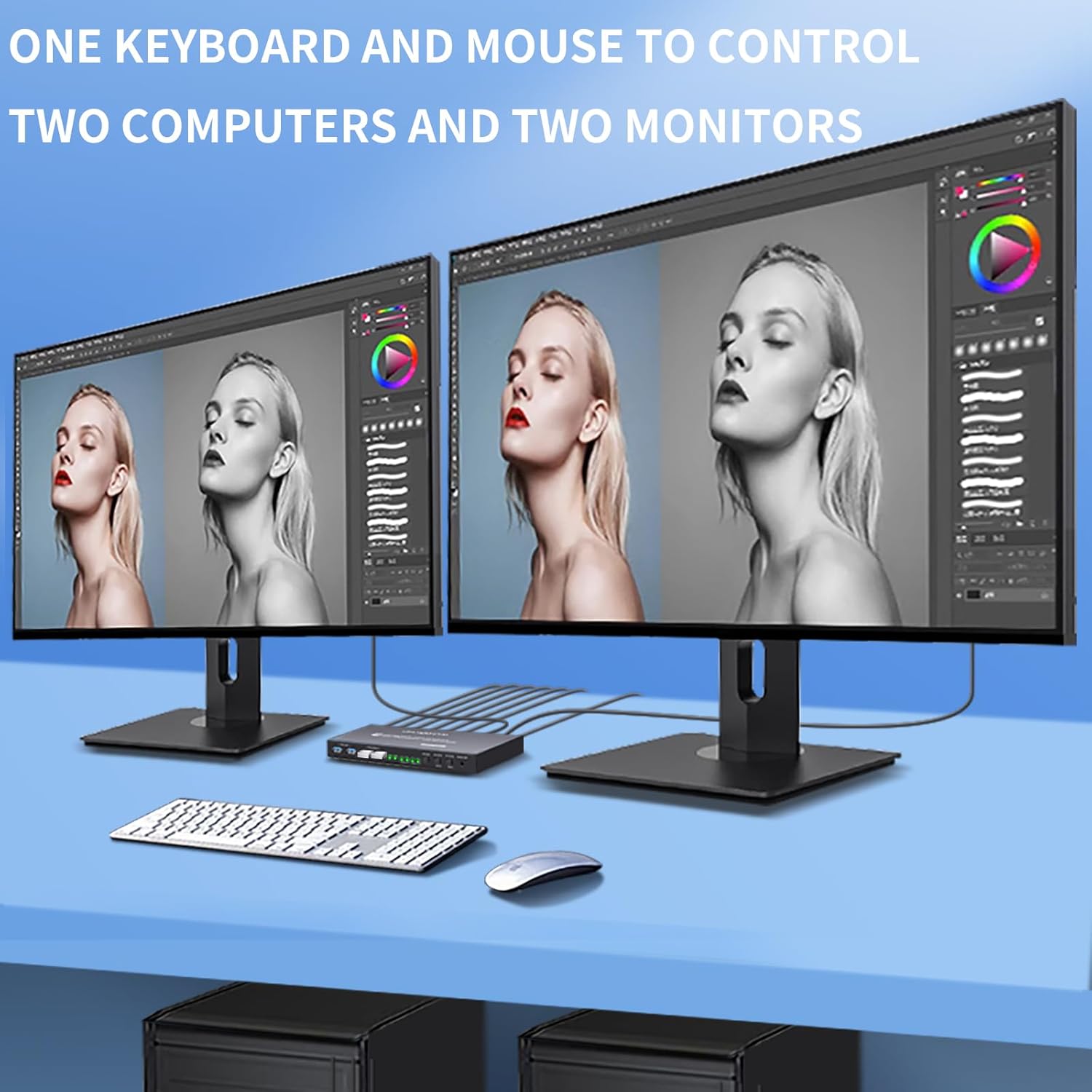

• 2X2 Matrix HDMI kvm switch 2 monitors 2 computers edid extended display:This is a 4K ultra-high-definition HDMI dual-screen matrix KVM switch that can control and manage multi-interface graphics cards, computers and other devices through a set of keyboards and mice; each channel supports two 4K HDMI signals and one USB3.0 input. The two sets of HDMI signals can freely control and define the main and sub-screens, and support extension mode, copy mode, and matrix cross mode.
• HDMI Matrix KVM Switcher 4K 60HZ: Compliant with HDMI 2.0 protocol, HDCP 2.3, maximum resolution of 4K@60Hz, 4096x2160@60Hz (4:3 display) or 3840x2160@60Hz (16:9 display), 2560x1440@144Hz and backward compatible, support: HDR, 3D, DTS, DOLBY.
• With EDID emulation function: When you play games, switch to other hosts without disconnecting the game. If you use a laptop + PC and use a KVM without EDID emulation function, every time you switch to the laptop channel, the laptop will have a black screen to identify the back-end display. This will not happen when using our KVM.
• HDMI KVM switch 2 monitors 2 computers, matrix KVM extended display, cross display: multiple computers start at the same time Support computer wake-up function Support various USB mechanical/gaming/wireless keyboards and mouseSupport: WINDOWS, MAC, LINUX, UNIX, VISTA, etc. Note: If you need to control the keyboard and mouse by hotkeys, please connect them to the designated interface. If the hotkeys on the keyboard and mouse do not work properly, please disable the hotkeys to ensure that other functions can work normally.
• HDMI KVM Switch 2 Monitors 2 Computers: This dual monitor kvm requires each computer or laptop to have 2 HDMI output interfaces, two monitors with HDMI input interfaces, and computers (especially laptops without dual HDMI outputs) need to use a docking station, please note this before ordering.
