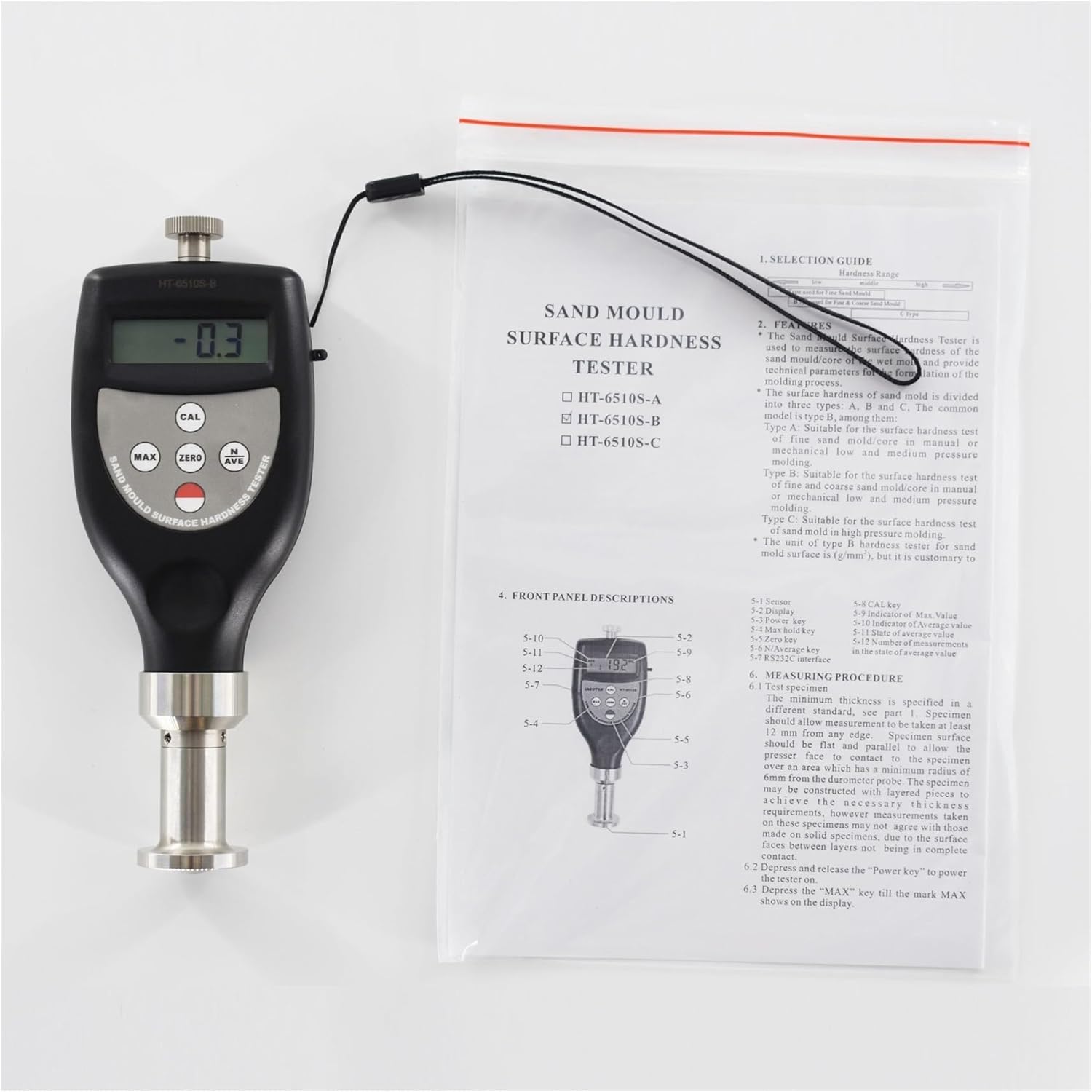

Hardness Tester, Sand Mould Surface Hardness Tester HT-6510S-B for Fine and Coarse Sand Mold/core in Manual Or Mechanical Low and Medium Pressure

The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process Features * It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215. * The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them: Type A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding. Type B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding. Type C: Suitable for the surface hardness test of sand mold in high pressure molding. * The unit of type B hardness tester for sand mold surface is , but it is customary to use hardness H instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large . sand mould surface hardness tester, Hardness Testers, Physical Measuring Instruments, Measurement & Analysis Instruments

• * With average calculate function.
• * Peak value deposit function.
• * Use USB data output to connect with PC.
• * Under-voltage alarm function.
• * Provide data output choice.
