FLASH HOBBY Brushless Motor D3548 790KV Outrunner Motor for Mini Multicopters RC Plane Helicopter Fixed-Wing Aircraft

Specification: Weight: 156g Motor size: 35 x 48mm Shaft size: 5.0 x 65.5mm Motor mount: 16 x 19mm (M3*4) No.of Cells(Lipo): 3-5S Recommended ESC:70A Working temperature range: -0℃~+80℃ Control method: use ESC and adjust PWM signal for control, PWM adjustment range 900-2100US D3548-1100KV: Max pull: 2150g Volts: DC11.1~18.5V Suggested ESC: 40A Maximum power: 911W Suggested prop: 12inch prop D3548-900KV: Max pull: 1780g Volts: DC11.1~18.5V Suggested ESC: 40A Maximum power: 770W Suggested prop: 11inch prop D3548-790KV: Max pull: 1650g Volts: DC11.1~18.5V Suggested ESC: 40A Maximum power: 717W Suggested prop: 12inch prop

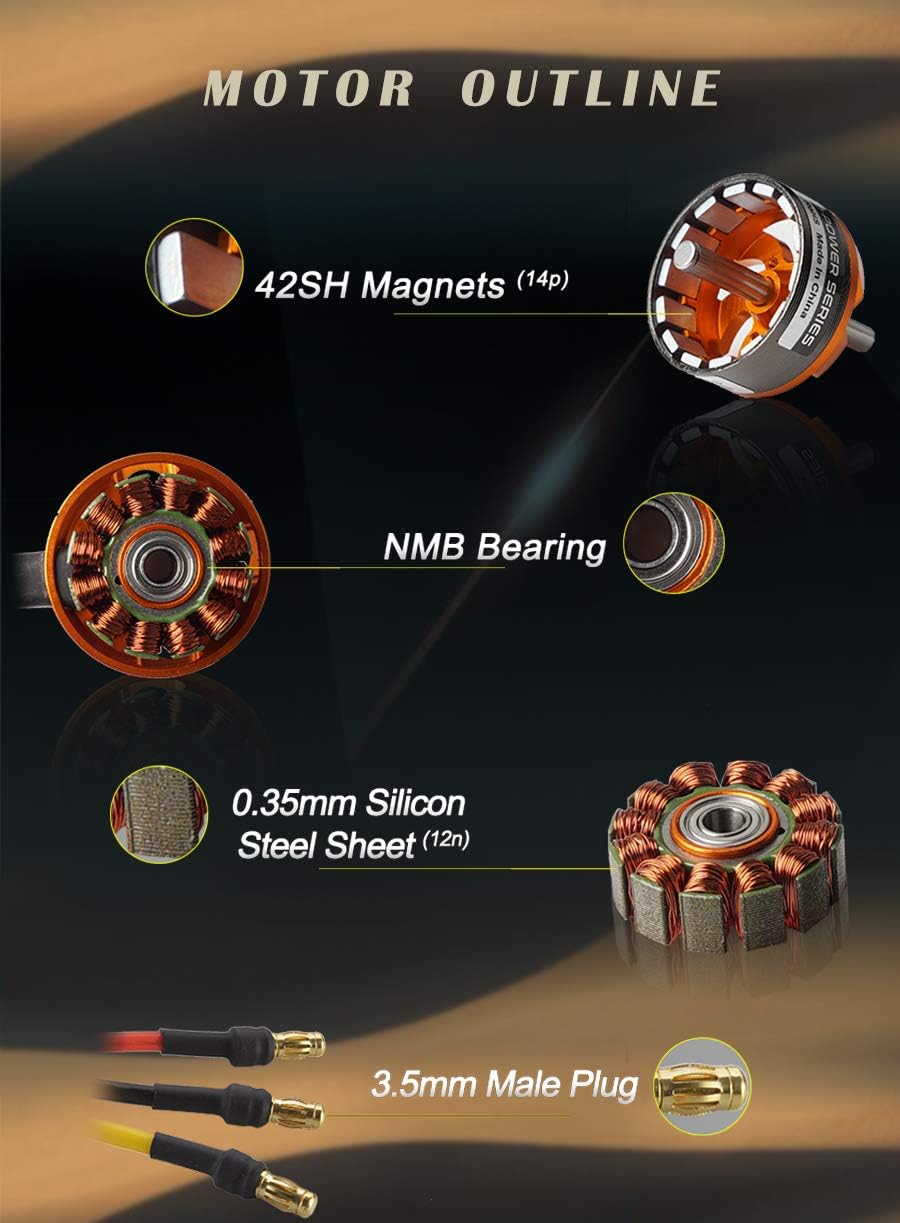

• High Torque——Precision engineered for maximum energy conversion. Precision balanced rotor, smoothness for best reliability, and maximum RPM
• Good Performance——Featuring 12N14P high torque design, strong thrust, more powerful than other ordinary brushless motors, high working efficiency
• Superior Material ——NMB bearing, high magnetic permeability, good insulation, and heat resistance
• Parameter——Brushless motor is 790KV for fix-wing helicopter, and the max pull can up to 1650g. Shaft size is 5.0 x 65.5mm, recommend ESC for 40A and 12inch prop to use
• Function——High purity copper windings maximize efficiency, 3.5mm male plug, low friction, low noise, durable
