Eagles 50 Amp/600V Power Connector Plug with Boot Caps, 6PCS Quick Connect/Disconnect Battery Plugs for 7/8/10/12 AWG Wires, Recovery Winch, Towing Systems, Jumper Cables (Grey)
4.5 (17 items)
Limited Time Sale$9.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218918011 | Release Date | 2026/05/03 | List Price | $6.40 | Model Number | 218918011 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Eagles 50A 7-12 AWG Battery Quick Connect Disconnect Wire Harness Plug Kit 6 Pcs Battery Cable Quick Connect Disconnect Plug for Winch Auto Car Trailer Driver Electrical Devices,Grey Winch power cable quick disconnect allows quick connect and disconnect for cars, trucks, winches, tow and dump trailers, audio equipment, solar panel systems, auxiliary batteries, and other electrical devices Specification: Color: Grey AMP Rating: AC/DC 50 Rated voltage: UL rated at 600 volts DC or AC Terminal material: Cu/Ep&Ag Plastic shell material: PC fire-retardant materials Contacts material: copper silver Fire rating: UL94 V-0 Internal shrapnel: 65Mn Environment Termperature: -4℉~221℉/-20℃ ~ 105℃ Power connector specification(AWG USA): 7,8,10,12 AWG Connector specification (mm²): 4-12 How to use: Insert the wires into the terminal pins, then solder or crimp them Insert the terminal pins into the connector housing and lock them in place Suitable For: UPS battery power connector Connect/disconnect Cycles: 10,000 times Product Highlight: Molded Side Grooves Allows for a secure panel mounting fit Mechanical Keyed Housings Prevents accidental mating of components operating at different voltage levels Single-piece housing and unitized construction Provides industrial quality and durability battery cable connector They're made from copper coated with silver, which offers high conductivity and produces less heat Accurately polarity markings on the housing help in proper wiring. Package Includes: 6 x Grey Anderson Connectors 12×Terminals 6 x Boot Caps ☎ Eagles - Your Professional Tool House Provide CE certificate

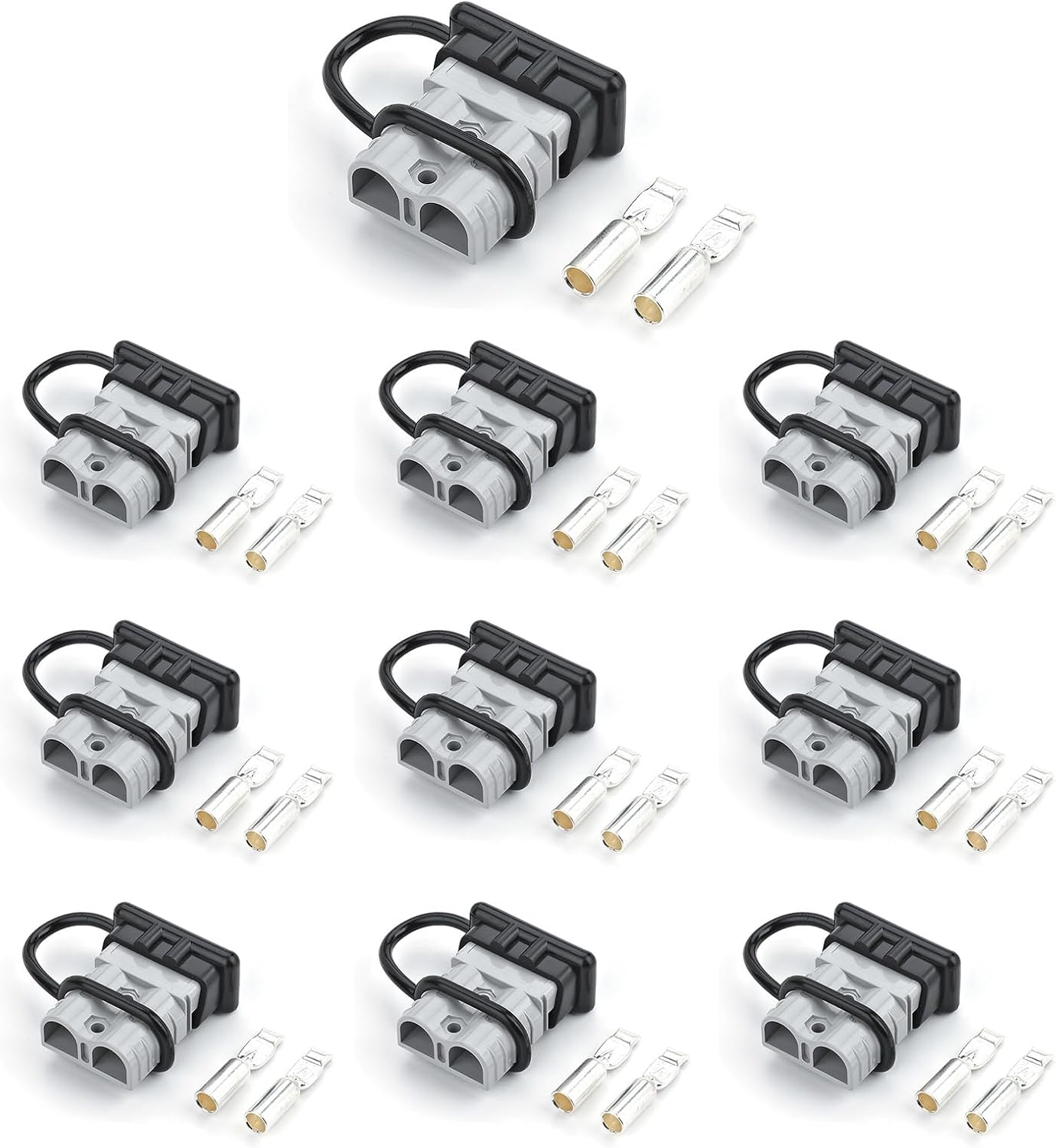

- 50A/600V Rated - Rated for 50A/600V, 6Pcs 50 Amp battery connector plugs (Interconnecting halves),12Pcs copper terminals silver plated,6Pcs Boot Caps. Provides simple and convenient method for connect/disconnect power to a winch or other electrical device such as remote battery chargers, power inverters, solar setups,trailers, or for any purpose requiring a high-current, quick-disconnect connector

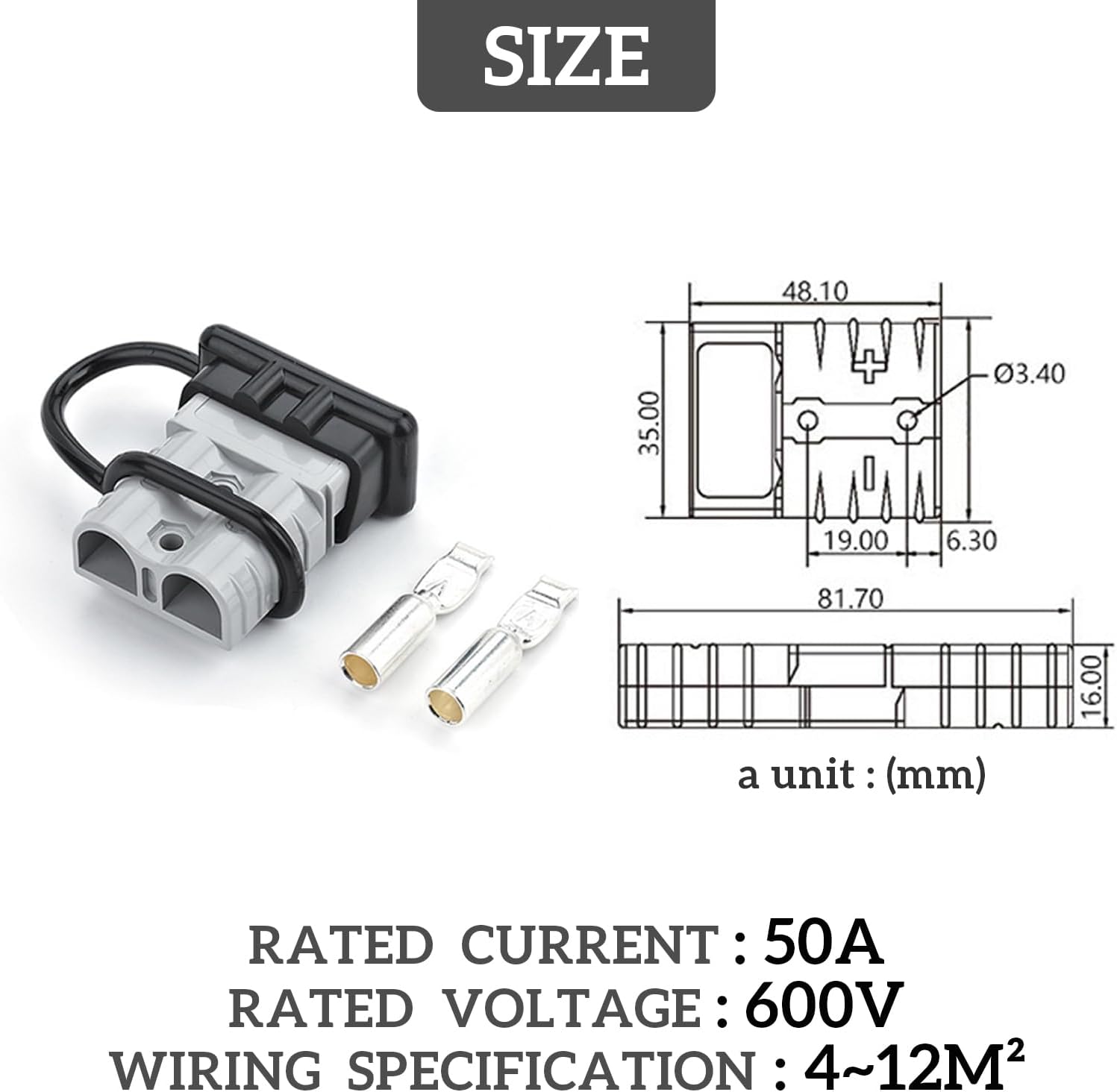

- Winch Quick Connect Wiring Dimension - 1.38" x1.89"x0.63"/power pole connectors. Ratings: 50 amps, 600 Volts Max.Complete with terminals 7, 8, 10, 12 AWG wires (depending on your terminal choice of size)

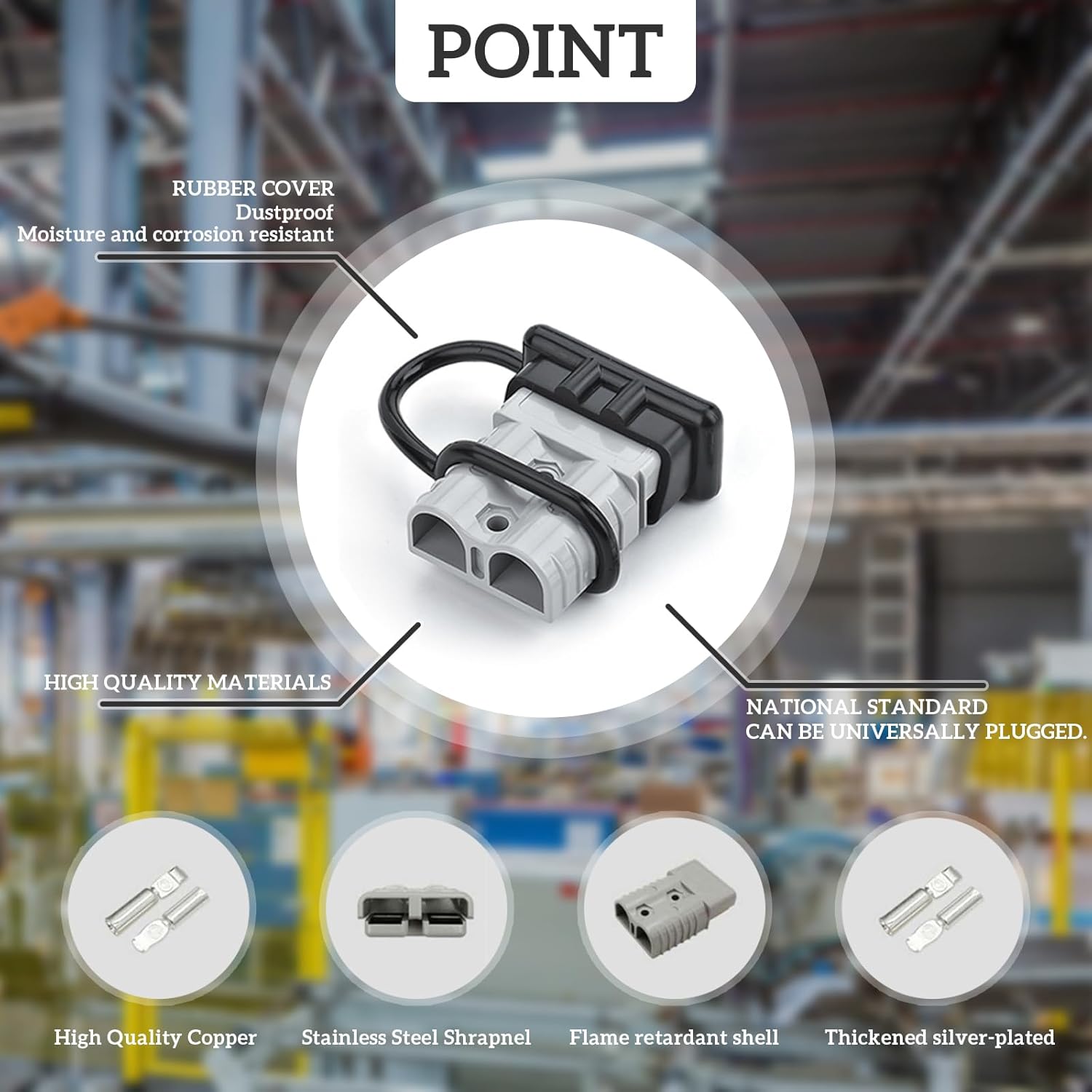

- Silver Plated Contacts - Offers greater longevity when using high power, elevated temperature applications.Terminals can either be crimped or soldered to the cables.Standard Temp: -20°C to 105°C (-4℉~221℉)
- Mechanically Keyed Housings - Prevents accidental component mating (each connector slots into the other - there is no male and female version) Inserting into the same color is a pair, easy and quick to splice and interrupt(Different colors are not compatible)
- Safe Contact - Both ends are suitable for connection to the power or load side because of its identical connectors.The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another, preventing accidental reverse polarity when hooking up a charger
| UPC | 749671544238 |
|---|---|
| Color | GREY-6PCS |
| Model | Electric Plugs |
| Terminal | Pin Terminal |
| Brand Name | Eagles |
| Unit Count | 1.0 Count |
| Part Number | Eagles |
| Manufacturer | Eagles |
| Connector Type | Pin |
| Maximum Voltage | 600 Volts (DC) |
| Contact Material | Copper |
| Specification Met | CE, UL |
| Insulation Material Type | Polycarbonate |
