Digital Length Meter Counter, Digital Measuring Wheel with Control 0-999999M and Power-Off Memory Function, for Cable Fishing Line Silk Thread Wire

SpecificationPower consumption: 3VAPause time: 0.05 secondsStorage temperature: -20 -70Reset time: 0.05 secondsAuxiliary power supply: DC12V 30mA (maximum)Installation method: panel typeopening size 68X 68mmContact capacity: AC250V 5A COS=1; DC24V 7ACounting method: contact counting, NPN sensor countingCounting speed: 1-500HZWithstand voltage: AC2000V 50/60HZ1 minute Impact: Impact resistance: 3 times each of 30GX, Y, and Z,malfunction: 3 times each of 10GX, Y.ZVibration: Anti-alarm: 10-55H2 (cycle 1 minute) amplitude 0. 75mm, 1 hour each in X, Y and Z directionsVibration: Malfunction: 10-55HZ (cycle 1 minute) amplitude 0. 50mm, 10 minutes each in X, Y and Z directionsProduct Include 1* Digital Length Meter Counter

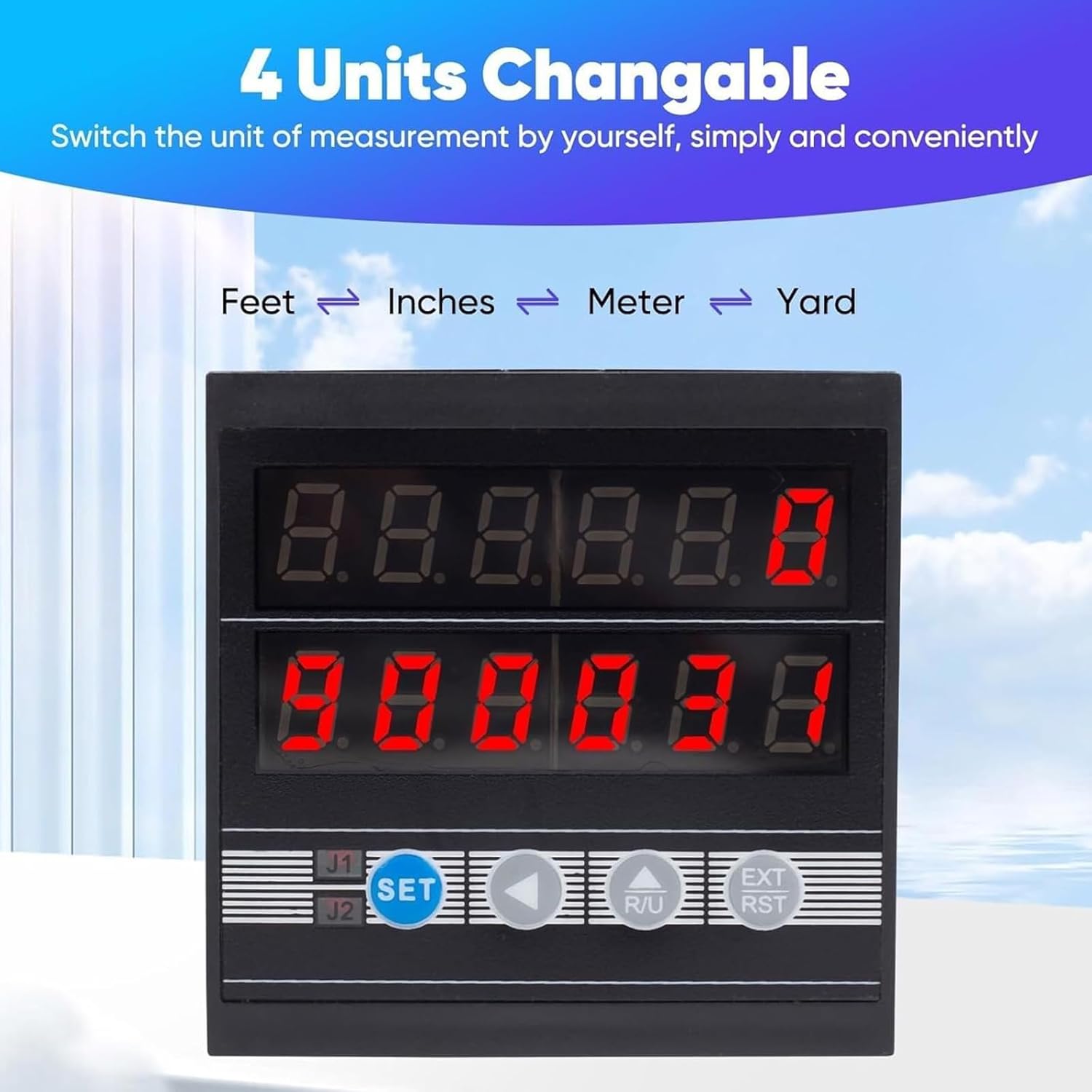

• Product Parameters: The measurement units of this length meter counter are feet, inches,meters and yards which are switching freely. It has double row 6-digit count, the upper row displays the measured value and the lower row displays the preset value, the counting range from 0-999999

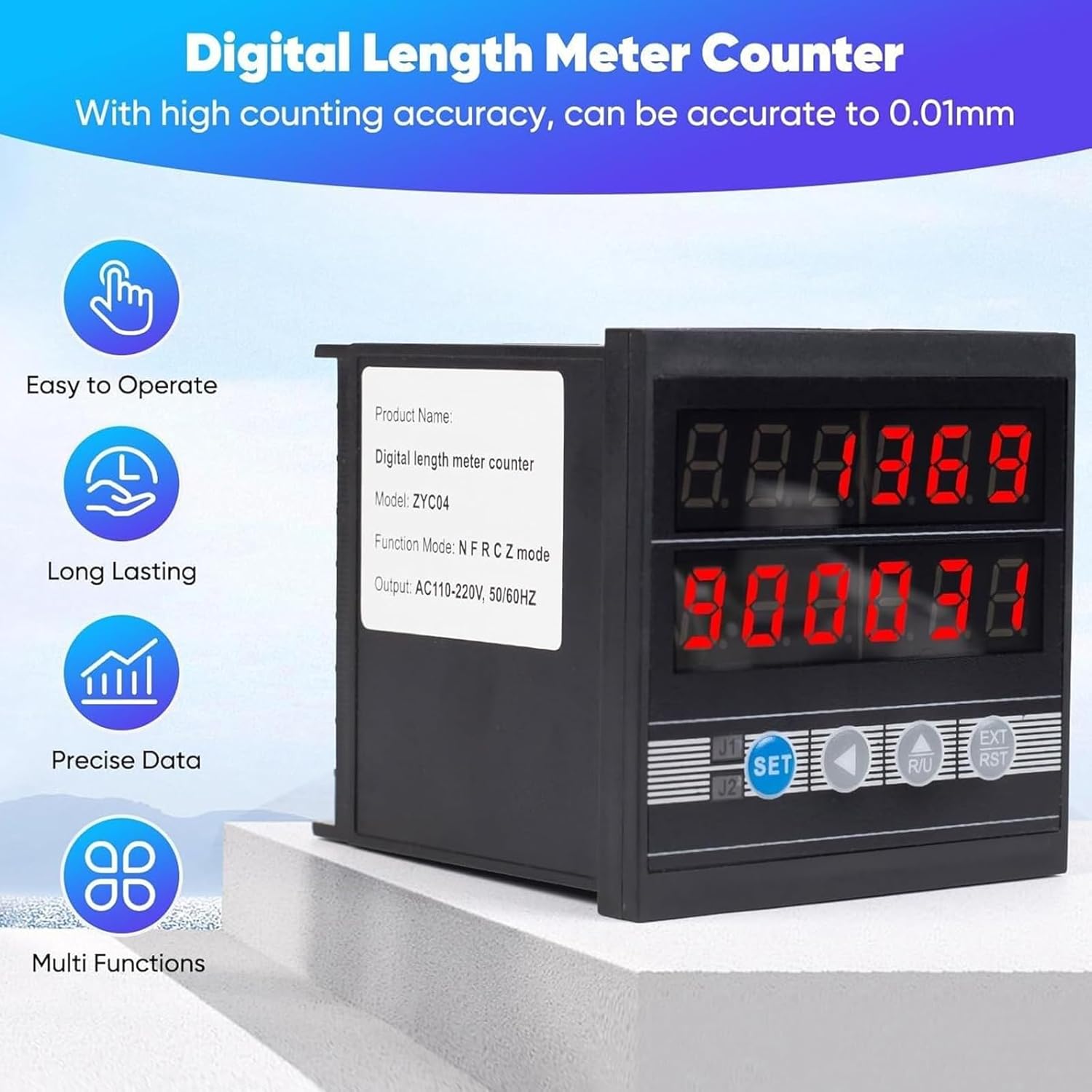

• Accurate Counting: The digital meter counter can be accurate to 0.01mm with high counting accuracy for more accurate length counting. The length meter counter has the power-off memory function
• 2 Relay Output: The length counter has 2 relay outputs and can simultaneously control 2 devices. It can be used not only to control alarms, but also to control solenoid valves, motors, etc
• Alarm Setting: The digital length meter counter can be connected to an alarm. The alarm will automatically alarm, after the measured value reaching the preset value. The mechanical length counter also can be set to automatically reset, which is convenient to work. NOTE：The alarm is not included
• Application: This is a length measuring meter that can be used to measure the length of fabrics, posters, wires, pipes, films, edge banding machines, conveyor belts, etc. It is widely used in various industries such as textile, papermaking, printing, etc. The forward rotation means to increase the length, and the reverse rotation is to reduce the length
