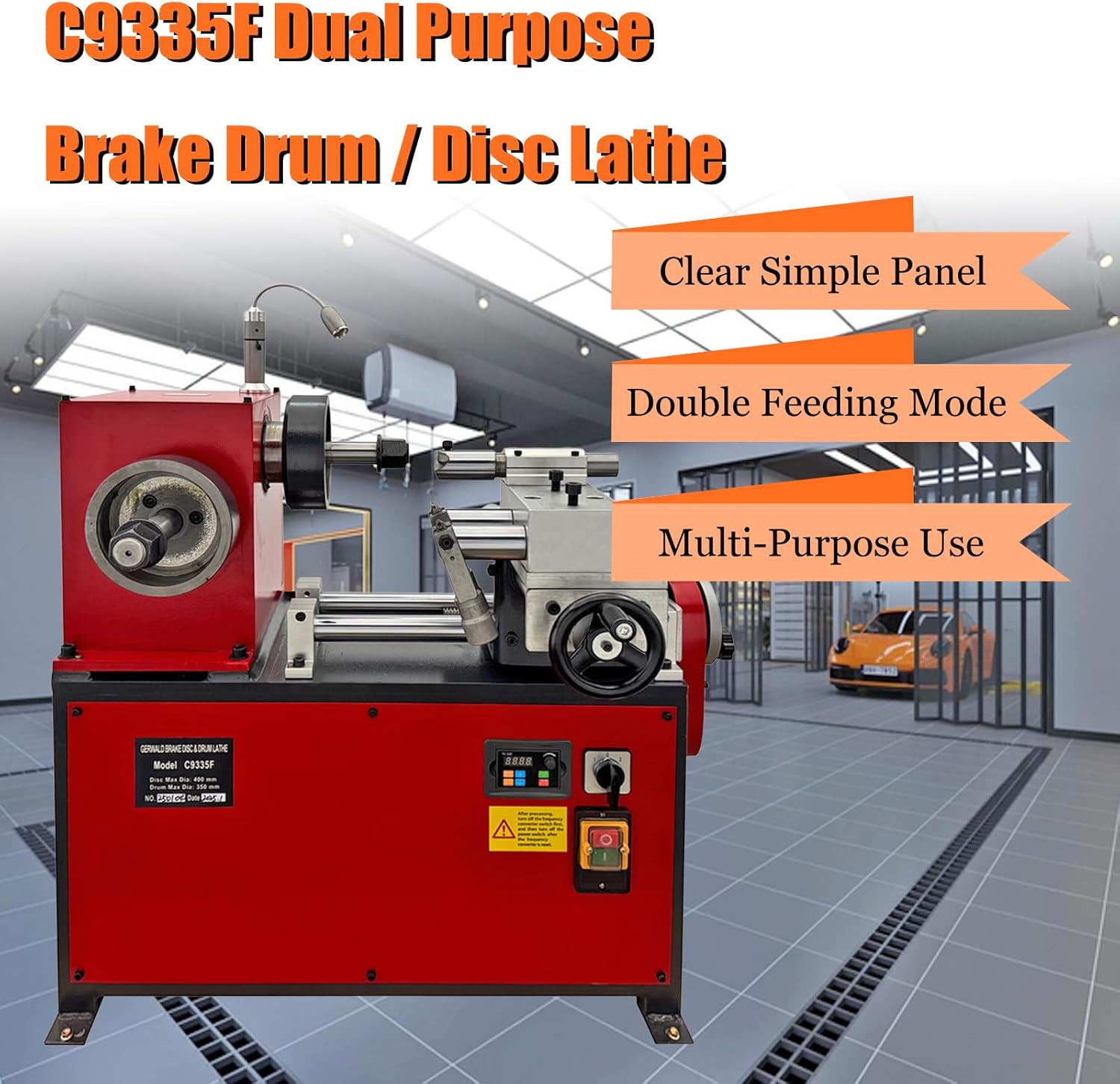

Brake Drum/Disc Lathe C9335F Dual Purpose Brake Disc Repair Machine Drum Maintenance Lathe Turning Machine with Variable Frequency Speed Control, AC110V

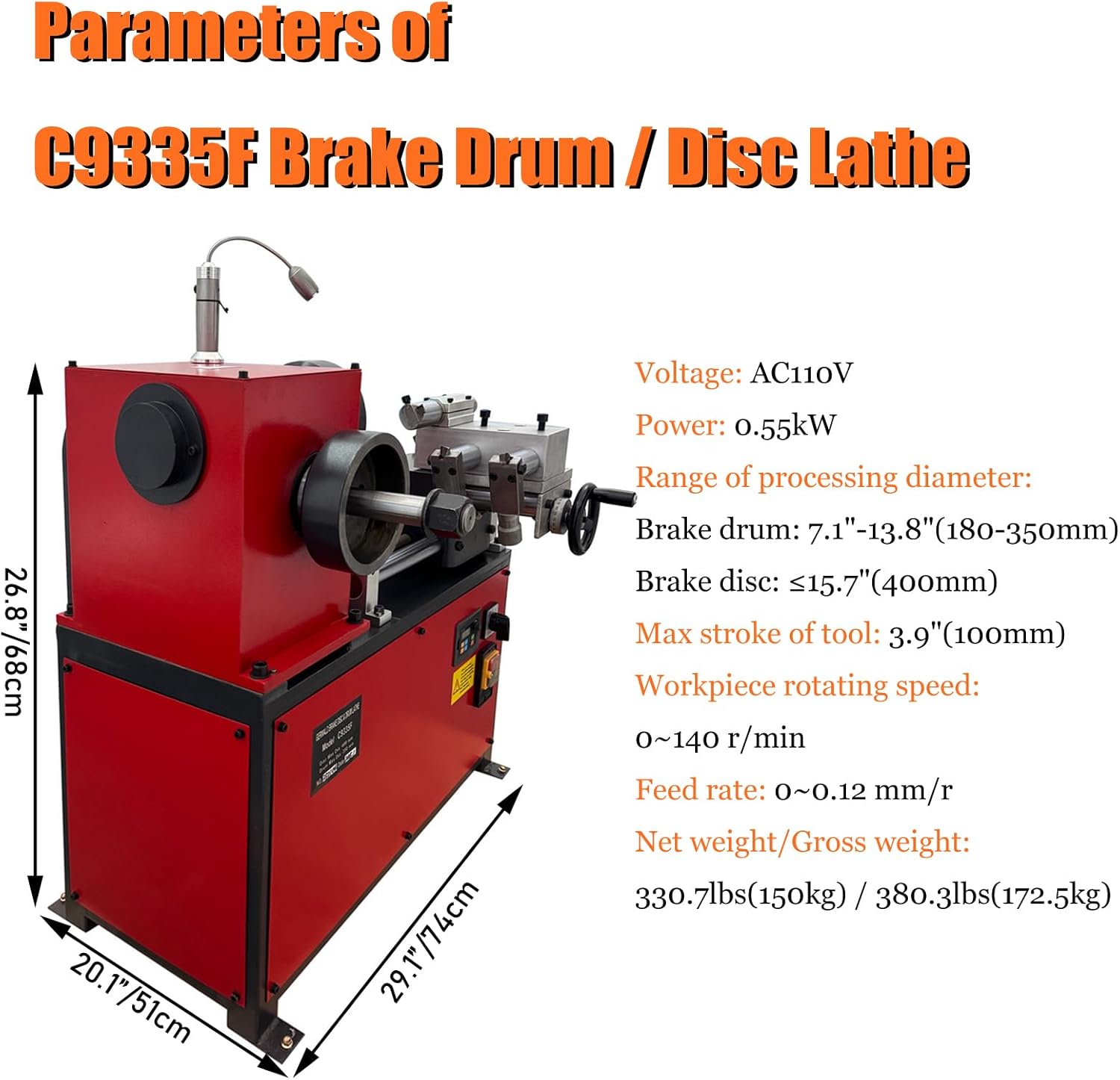

Product Parameters Voltage: AC110V Power: 0.55kW Range of processing diameter: Brake drum: 7.1"-13.8"(180-350mm) Brake disc: ≤15.7"(400mm) Max stroke of tool: 3.9"(100mm) Workpiece rotating speed: 0~140 r/min Feed rate: 0~0.12 mm/r Machine size: 29.1*20.1*26.8" (74×51×68cm) Package size: 31.9*24.0*33.1" (81×61×84cm) Net weight/Gross weight: 330.7lbs(150kg) / 380.3lbs(172.5kg) One package includes Brake drum disc lathe *1 Accessory kit *1

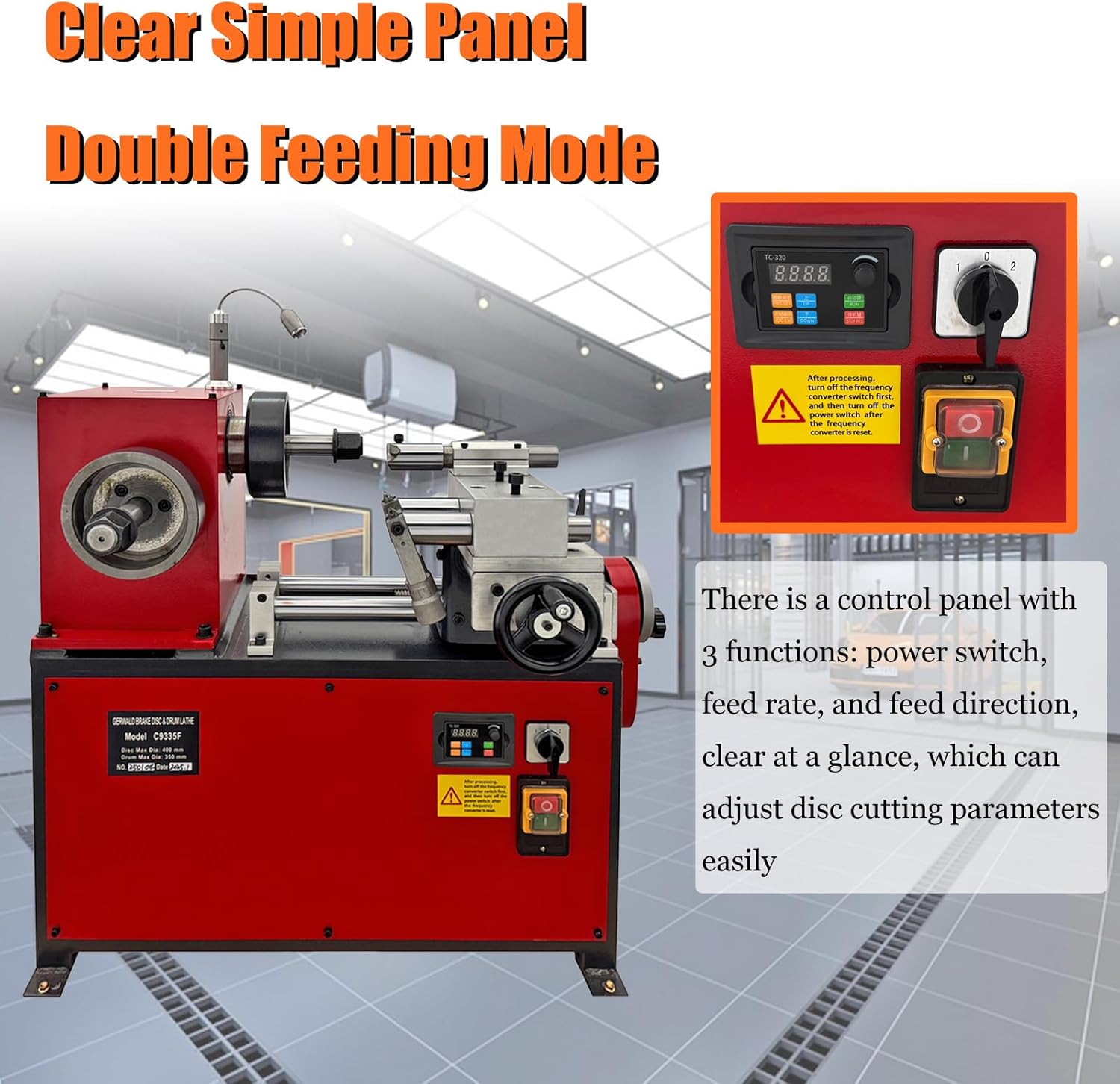

• Clear Simple Panel: There is a control panel designed on the brake disc / drum lathe with 3 functions: power switch, feed rate, and feed direction, clear at a glance, which can adjust the disc cutting parameters easily

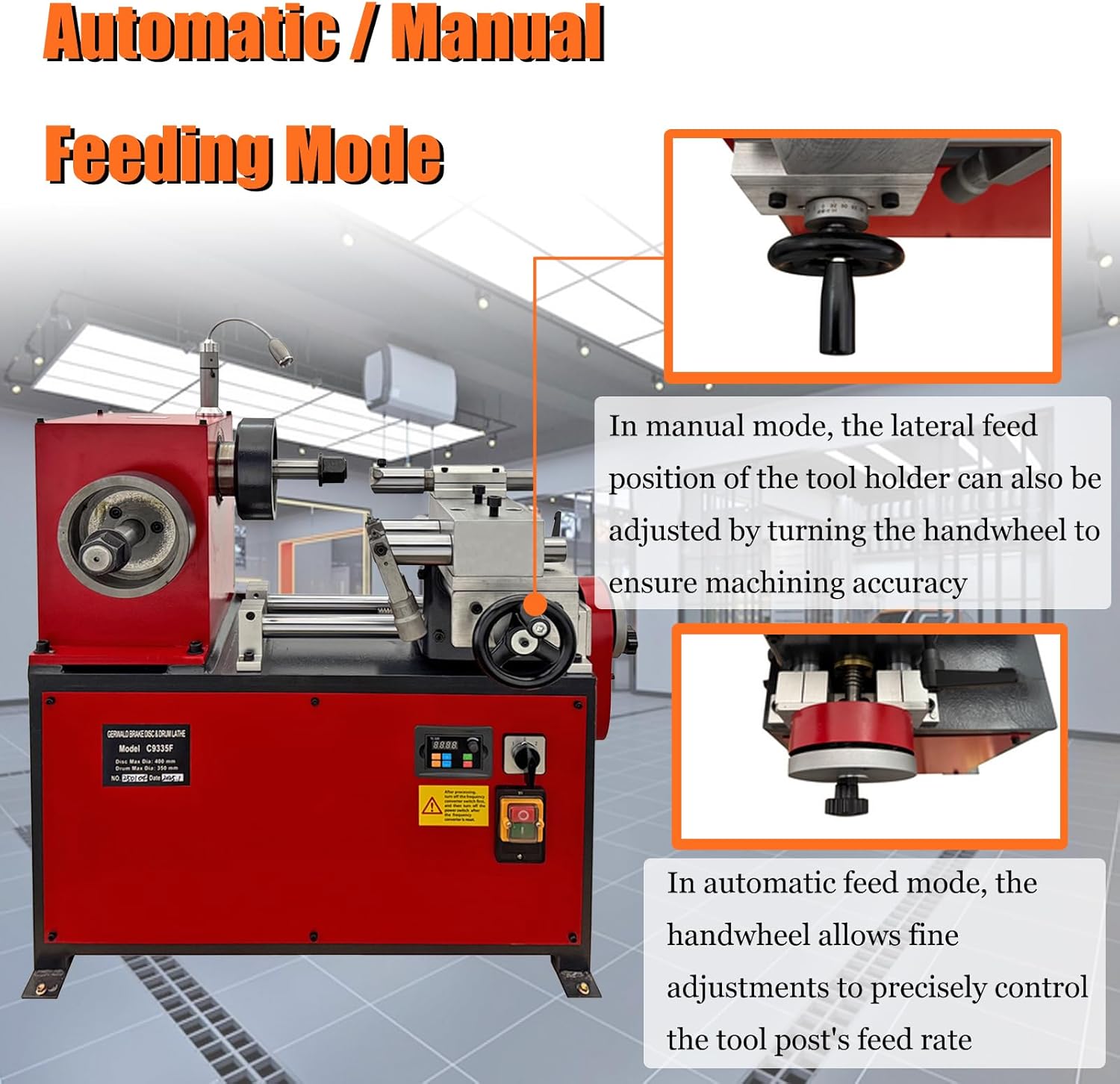

• Double Feeding Mode: This C9335F brake drum / disc lathe adopts manual and automatic feeding mode, in automatic feed mode, the handwheel allows fine adjustments to precisely control the tool post's feed rate, and in manual mode, the lateral feed position of the tool holder can also be adjusted by turning the handwheel to ensure machining accuracy

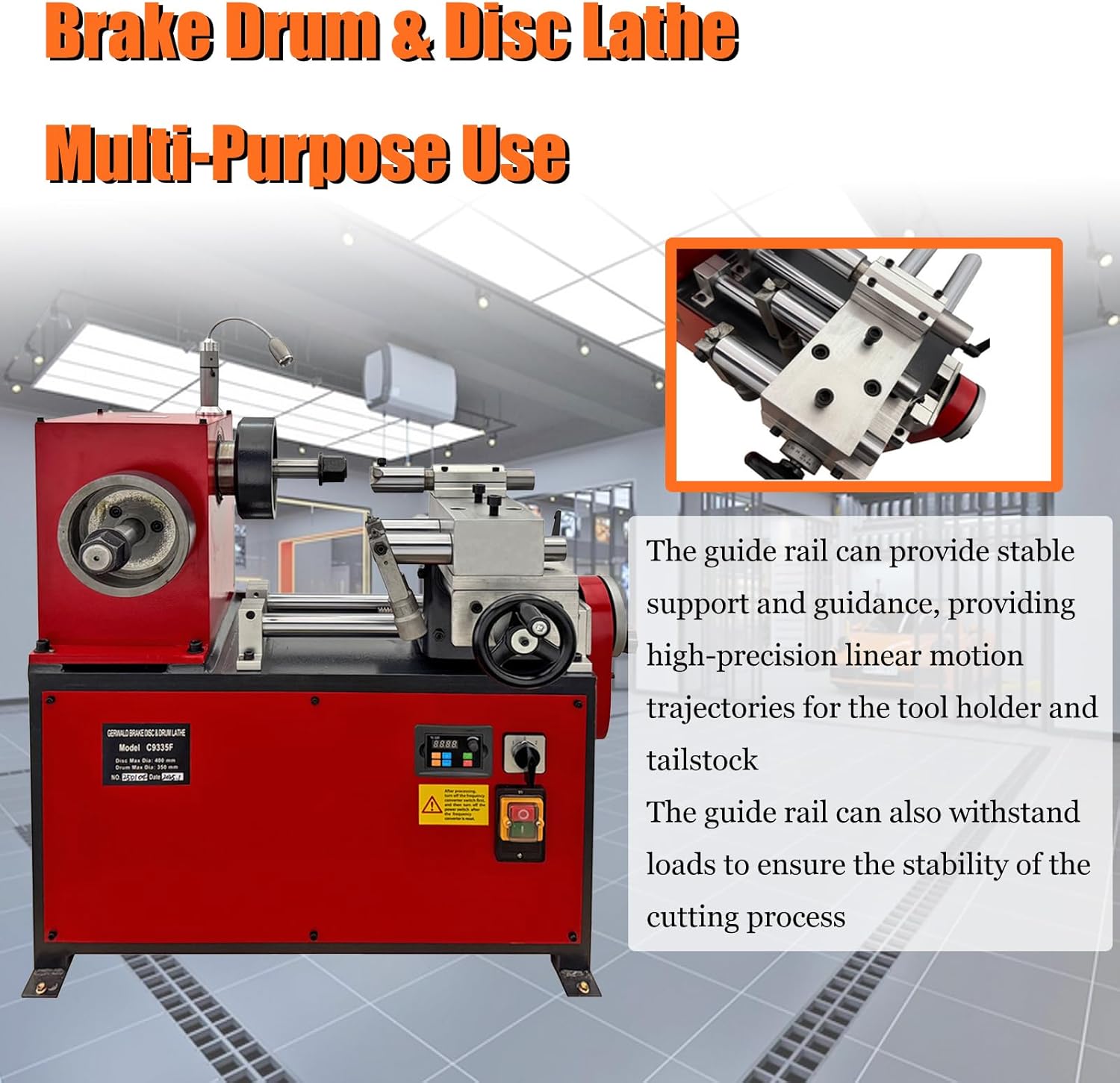

• Stable Cutting Process: The guide rail can provide stable support and guidance, providing high-precision linear motion trajectories for the tool holder and tailstock, at the same time, the guide rail can also withstand loads to ensure the stability of the cutting process
• Multi-Purpose Use: With multi-Purpose use of drum and disc, the brake disc lathe can be used to process small car's brake drum and brake disc, suitable for automobile repair shop, automobile sales shop, auto beauty shop and other places
• Resonaable Sturcture Design: The lathe saddle is designed for brake disc and drum machining, simple structure and easy maintenance, providing high rigidity for precision operation, besides, a working light is installed on the top of the tool head to provide light to ensure continuous work when natural light is insufficient during processing
