ATS220 Generator Genset Controller Panel ATS Control Auto Transfer Switch Dual Power DC 8V-36V Single Phase, 78*78*55mm (3.07*3.07*2.17in)
4.9 (110 items)
Limited Time Sale$41.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220448718 | Release Date | 2026/05/03 | List Price | $27.60 | Model Number | 220448718 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Parameters Display ?Mains phase voltage ?Mains Frequency ?Gens phase voltage ?Gens Frequency Parameters Operation Voltage: DC8-36V Continuous Power Consumption: Standby: 24V Mains AC Voltage Input: Single Phase twowires 30VAC-300VAC Gens Close Output: 5Amp free output Mains Close Output: 5Amp free output Gen Start Relay: 5Amp free output Switch Value Input: Available if connectingwith Battery- Working Condition: -30-70Degree C Storage Condition: -40-85Degree C Protection Level IP54: when water proof rubbergasket is added between controller and its panel Overall Dimension: 78mmx78mmx55mm Panel Cutout: 67mmx67mm Weight: 0.3Kg

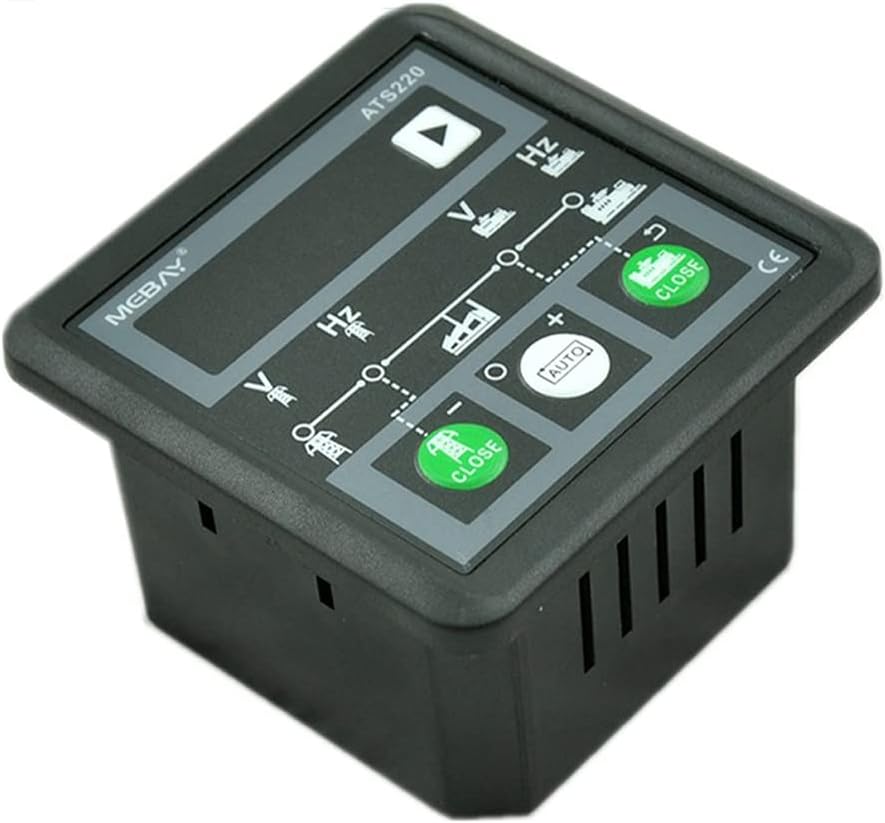

- 4 digits LED tube can display voltage and frequency of mains and generator. Parameters can be set by front face buttons.
- 32 units Micro-procession technology and wide voltage range: 8v-36v
- Totally 7 relay’s output, max current is 5A (250VAC). 1 group programmable switch input.
- Equipped with mains analog function. Conditions of starting the generator can be chosen.
- Standard water-proof rubber, the protection level can reach at IP54.
| UPC | 761210237661 |
|---|---|
| Color | Black |
| Voltage | 36 Volts (DC) |
| Frequency | 50 Hz |
| Brand Name | YOKDEN |
| Model Name | ATS220 |
| Unit Count | 1 Count |
| Engine Type | Inverter |
| Item Weight | 0.3 Kilograms |
| Manufacturer | Chongqing Yokden Electromechanical Equipment Ltd. |
| Model Number | ATS220 |
| Power Source | Fuel Powered |
| Material Type | Rubber |
| Current Rating | 5 Amps |
| Starting Wattage | 1500 Watts |
| Additional Features | Digital Display |
| Included Components | Water-proof rubber, 7 relays, 1 programmable switch input, Transfer switch |
| Total Power Outlets | 2 |
| Ignition System Type | electric start |
| Manufacturer Part Number | ATS220 |
| Item Dimensions L x W x H | 2.17"L x 3.07"W x 2.17"H |
| Recommended Uses For Product | Commercial |
