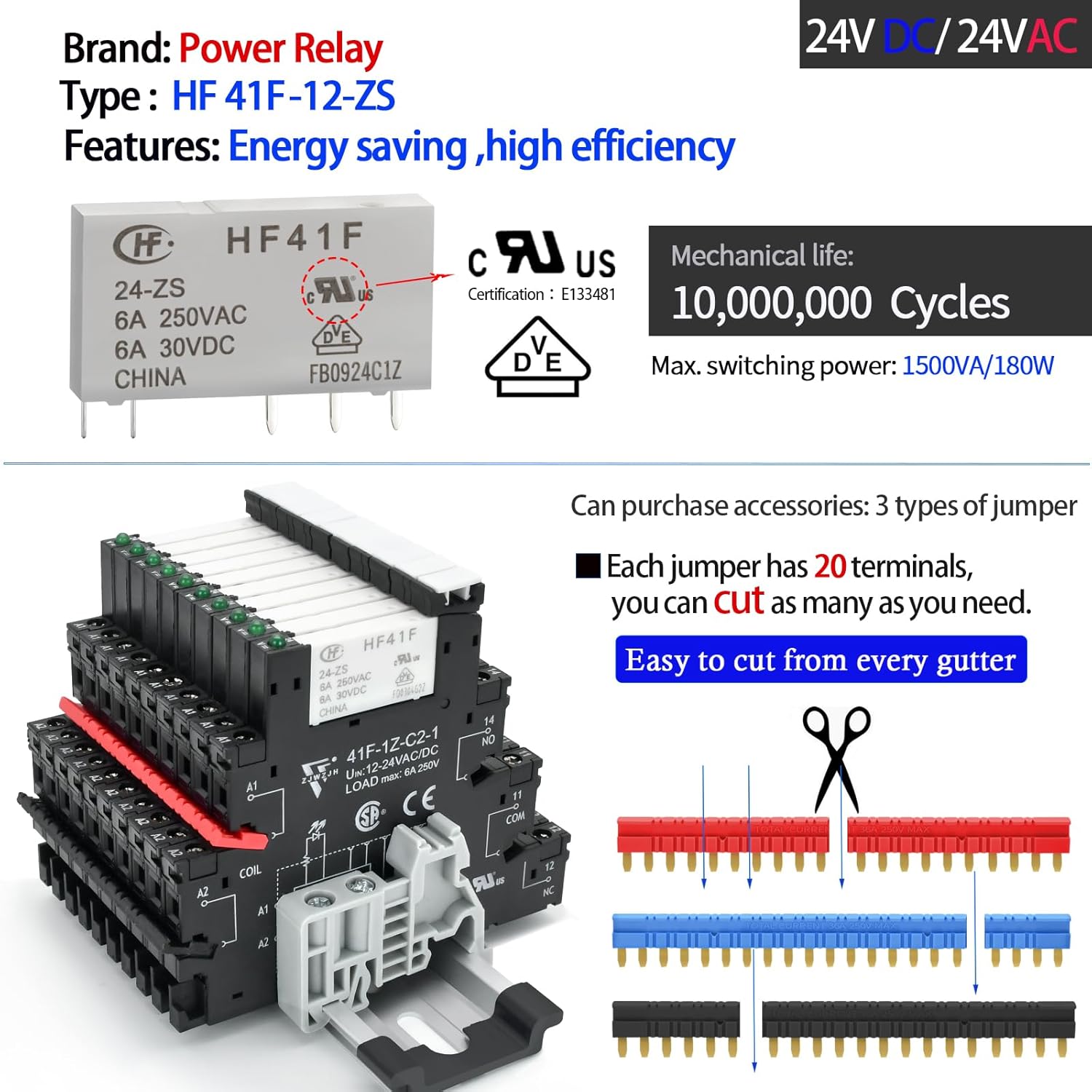

3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
4.5 (56 items)
Limited Time Sale$13.04 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218151992 | Release Date | 2026/05/03 | List Price | $8.70 | Model Number | 218151992 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

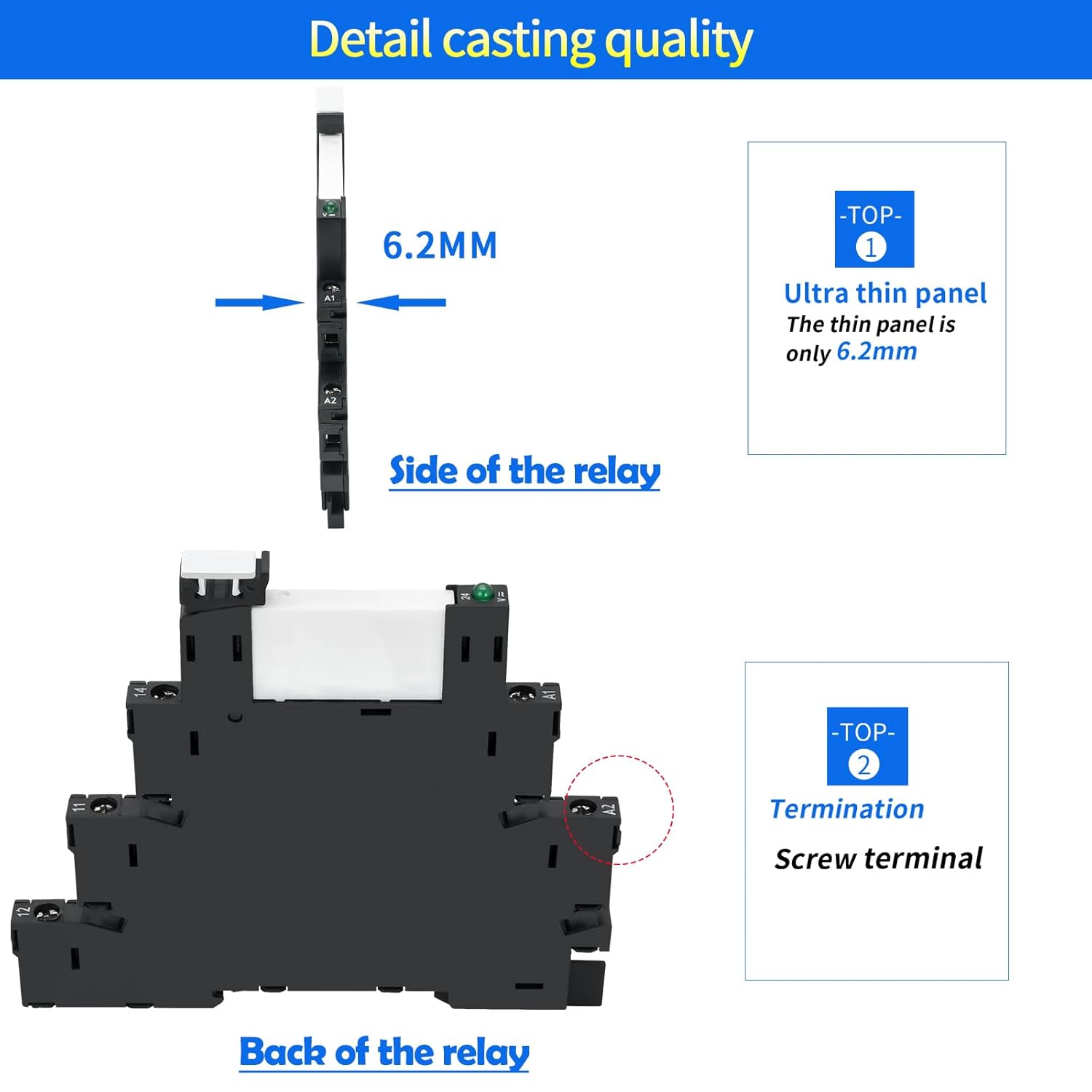

- 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
- 【Electromechanical Relays】Relay Coil Voltage: 24V AC/DC , Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin. Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.
- 【Black Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Apply to relay the rated voltage: (12~24)V DC; Input voltage polarity: NO.
- 【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
- 【Package】Package Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw.Ambient temperature: -40℃ ~ 70℃.
| Model | HF41F/24-K |
|---|---|
| Wattage | 180 watts |
| Brand Name | ZJWZJH |
| Unit Count | 3.0 Count |
| Item Weight | 0.07 Pounds |
| Part Number | HF41F/24-K |
| Coil Voltage | 24 Volts |
| Contact Type | Spdt |
| Manufacturer | ZJWZJH |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 6 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver Tin Oxide, Silver Nickel |
| Specification Met | UL |
| Contact Current Rating | 6 Amps |
| Upper Temperature Rating | 70 Degrees Celsius |
| Maximum Switching Current | 6 Amps |
Electromechanical Relays
